Overview

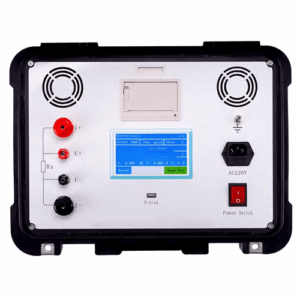

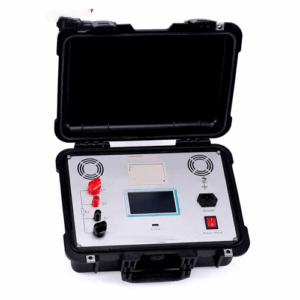

Enviro Forest contact resistance tester adopts the new technology of the power supply, which can continuously output large current for a long time. It overcomes the defect of impulse instantaneous current of the power supply and can effectively break through the oxidation film of switch contact and get good test results under the condition of serious interference; the last bit data of LCD can be stable at ±1 word. The scope of stable reading, good repeatability. It has a long service life all Micro Ohmmeter adopts high precision resistance, which effectively eliminates. The influence of the environment temperature on the measurement results. Meanwhile, the use of military connectors enhances the anti-vibration performance.
Features
- High current
- High stability
- High precision
- Intelligent
- High quality
- Powerful function
- Friendly man-machine interface
- USB transfer
- Easy to use
Technical Specification
| Measurement Range | 0 to 2999.9 μΩ |
| Resolution | 0 to 99.99, 0.01 μΩ ,100.0 to 2999.9, 0.1 μΩ |
| Test Current | DC 50 A, 100 A fixed output |
| Accuracy | ± (0.5% rd+2d) |
| Continuous Working Time | 5 s to 599 s |
| Communication Mode | U disk dump |
| Maximum Storage Record | 200 pcs |
| Display | Large screen LCD display |
| Total Power | 600 W |
| Weight | 17.645 lb (8 kg) |
