Insulation Resistance Testers

What Defines Insulation Resistance Testers in Electrical Measurement Systems

Enviro Forest categorizes insulation resistance testers as high-voltage diagnostic instruments engineered to quantify the resistance offered by insulating materials against leakage current under applied DC stress conditions. These instruments are essential for evaluating dielectric strength and long-term insulation reliability in electrical systems supporting environmental monitoring and forestry-based measurement networks.

Core Measurement Principle

Insulation resistance testers operate by injecting a DC voltage into the insulation system and measuring the resulting leakage current. The resistance is calculated using Ohm’s Law, with high resistance indicating healthy insulation and low resistance signaling deterioration or contamination.

Product Types Available Through Enviro Forest

Enviro Forest supports multiple insulation testing configurations tailored to field and industrial requirements:

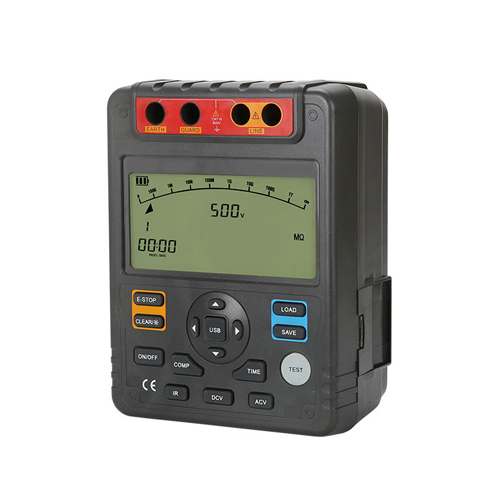

• Handheld Insulation Resistance Testers
  Portable units for on-site diagnostics of cables, motors, and distributed monitoring equipment in forest-based installations
• High-Voltage Insulation Testers (5 kV to 15 kV)
  Used for testing heavy-duty equipment such as transformers and long-distance cable systems deployed in rugged environments
• Digital Megohmmeters with Data Logging
  Advanced testers capable of recording time-based insulation resistance trends for predictive maintenance
• Multi-Function Electrical Testers
  Integrated systems combining insulation testing with continuity, voltage, and resistance measurements for field engineers
• Automated Insulation Test Systems
  Rack-mounted or integrated solutions for production environments or large-scale asset validation programs

Each product type is engineered to address specific operational constraints, including environmental exposure, accessibility, and required measurement precision.

High-Precision Measurement Across Variable Voltage Ranges

Enviro Forest insulation resistance testers support selectable test voltages ranging from 50 V to 15 kV, enabling compatibility with low-voltage electronics as well as high-voltage industrial systems. Engineers can tailor test conditions based on equipment specifications and compliance requirements.

Polarization Index (PI) and Dielectric Absorption Ratio (DAR) Testing

Advanced models include automated PI and DAR calculations, providing insight into insulation aging and moisture contamination. These diagnostic ratios are critical in forestry environments where humidity and organic exposure can accelerate insulation degradation.

Time-Resistance and Step Voltage Testing

Time-resistance testing enables trend analysis of insulation performance over extended durations, while step voltage testing identifies weaknesses under increasing electrical stress. These capabilities are essential for assessing insulation reliability in remote monitoring infrastructure.

Robust Data Logging and Connectivity

Digital insulation testers from Enviro Forest incorporate onboard memory and connectivity options such as USB, Bluetooth, or Ethernet. Field data can be exported for analysis, reporting, and integration with asset management systems.

Environmental Hardening for Field Deployment

Devices are designed with rugged enclosures, ingress protection ratings, and temperature tolerance suitable for outdoor and forest-based operations. This ensures consistent performance despite exposure to moisture, dust, and biological contaminants.

Safety Features and Compliance Integration

• Automatic discharge of capacitive loads after testing
• Live circuit detection to prevent unsafe operation
• Insulation alarms and threshold-based alerts
• Compliance with international safety standards

Custom Configuration Options

Enviro Forest offers configuration flexibility to meet project-specific requirements:

• Adjustable voltage ramp profiles
• Custom test sequences for automated workflows
• Integration with SCADA or remote monitoring systems
• Calibration traceability for regulated industries

Through continuous product development and strict quality assurance, we ensure that each system aligns with real-world operational demands faced by engineers and system integrators.

Real-World Use Cases Across Forestry and Environmental Measurement Systems

• Validation of insulation integrity in long-distance sensor cables deployed across forest monitoring zones and ecological data acquisition systems
• Preventive maintenance testing of electric motors used in sawmills, wood processing facilities, and biomass energy operations
• Commissioning verification of underground power cables supporting remote environmental monitoring stations in high-moisture terrain
• Insulation diagnostics for transformers supplying power to distributed forestry instrumentation and weather monitoring equipment
• Detection of moisture ingress in control panels exposed to outdoor conditions and fluctuating environmental humidity levels
• Routine testing of renewable energy systems such as solar-powered monitoring units installed in forest environments
• Quality assurance testing of electrical assemblies used in environmental measurement equipment manufacturing
• Evaluation of insulation degradation in aging infrastructure supporting forest research stations and conservation monitoring networks
• Electrical safety verification for portable field equipment used by forestry engineers and environmental scientists
• Compliance testing of electrical installations within timber processing plants and related industrial facilities
• Monitoring insulation health in cable trays routed through biologically active zones with potential contamination risks
• Validation of backup power systems such as generators and UPS units supporting environmental data continuity

Each application reflects practical challenges encountered in environments where electrical reliability directly impacts data accuracy, operational safety, and long-term system sustainability.

Applicable Compliance Frameworks for Insulation Resistance Testing

• ANSI/NETA ATS
• ANSI/NETA MTS
• UL 61010-1
• CSA C22.2 No. 61010-1
• NFPA 70
• NFPA 70E
• IEEE 43
• OSHA 1910 Subpart S
• CAN/CSA-Z462
• IEC 61557

Precision Measurement for High-Resistance Environments

Enviro Forest systems are engineered to deliver accurate readings in the gigaohm range, ensuring reliable detection of early-stage insulation degradation that might otherwise go unnoticed.

Stability in High-Humidity and Contaminated Conditions

Forestry environments present unique challenges such as moisture, organic debris, and biological growth. Our insulation testers are designed to maintain measurement stability under these conditions, reducing false readings and improving diagnostic confidence.

Advanced Diagnostic Analytics

Built-in algorithms for PI, DAR, and leakage current profiling provide deeper insights into insulation behavior over time. These analytics support predictive maintenance strategies rather than reactive repairs.

Field-Proven Reliability

Extensive deployment across North American industrial and environmental sectors has validated the durability and performance consistency of Enviro Forest insulation testers in real-world scenarios.

Integration with Broader Testing Ecosystems

Our solutions are designed to integrate with complementary electrical field testers, enabling comprehensive diagnostics across voltage, continuity, and insulation parameters within a unified workflow.

Scalable Solutions for Enterprise Deployment

From handheld devices to automated testing systems, Enviro Forest supports scalability across small field teams and large industrial operations. Procurement teams benefit from standardized platforms that reduce training and maintenance overhead.

Quality Assurance and Calibration Integrity

Every device undergoes rigorous calibration and validation processes to ensure measurement accuracy and compliance with international standards. Traceability is maintained for regulated industries requiring audit-ready documentation.

Customer-Focused Engineering Support

Enviro Forest has quickly established itself as a trusted leader in delivering advanced environmental testing and measurement solutions for the forest industry. With a growing B2B presence across North America, we focus on technology innovation, product reliability, and responsive support. Our engineering teams work closely with clients to align testing methodologies with operational goals, ensuring measurable outcomes in efficiency and system reliability.

Organizations seeking reliable insulation resistance testers for demanding environmental and industrial applications can engage directly with our technical specialists. Whether evaluating product specifications, integrating testing workflows, or addressing compliance requirements, our team provides structured guidance based on field experience and engineering expertise.

For detailed product information, technical consultation, or procurement support, connect with Enviro Forest through our dedicated contact page at Enviro Forest by visiting Contact Us, where our team is ready to assist with tailored recommendations and implementation support.
