Overview

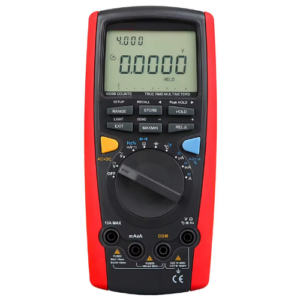

Enviro Forest’s True RMS digital multimeter with ohmmeter and data logging is a versatile tool designed for precise electrical measurements in industrial, laboratory, and technical applications. It measures AC and DC voltage and current, resistance, frequency, capacitance, and temperature, while also supporting diode and continuity tests. With a 40,000-count backlit LCD, True RMS accuracy, auto and manual ranging, and USB-enabled data logging, this device provides reliable results and efficient monitoring. Safety features such as overload protection, auto power-off, and low battery indication ensure long-lasting durability and professional-grade performance.

Features

True RMS for accurate signal readings
Auto and manual ranging for flexible operation
Integrated ohmmeter for resistance measurements
High-resolution 40,000 count backlit LCD display
Measures AC and DC voltage and current
Frequency, capacitance, and temperature testing
Data hold, relative mode, and max/min tracking
Continuity buzzer and diode test functions
Data logging and USB data transmission
Auto power-off and low battery indicator
Overload protection for all ranges
Durable, compact, and portable design

Technical Specifications

DC Voltage Range	400 mV to 1000 V
DC Voltage Accuracy	± (0.025% + 5)
AC Voltage Range	4 V to 1000 V
AC Voltage Accuracy	± (0.4% + 30)
DC Current Range	400 µA to 10 A
DC Current Accuracy	± (0.1% + 15)
AC Current Range	400 µA to 10 A
AC Current Accuracy	± (0.7% + 15)
Resistance (Ohmmeter)	400 Ω to 40 MΩ
Resistance Accuracy	± (0.3% + 8)
Capacitance Range	40 nF to 40 mF
Capacitance Accuracy	± (1% + 20)
Frequency Range	40 Hz to 400 MHz
Frequency Accuracy	± (0.01% + 8)
Duty Cycle	10% to 90%
Temperature Range	-40 °F to 1832 °F (-40 °C to 1000 °C)

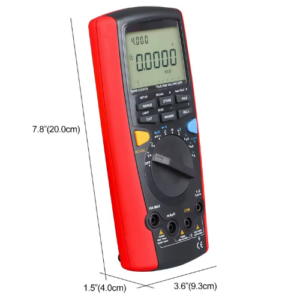

Dimensions	7.87 in x 3.66 in x 1.57 in (200 mm x 93 mm x 40 mm)
Weight	0.85 lb (384 g)
