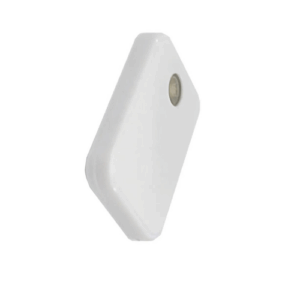

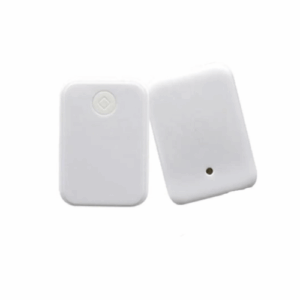

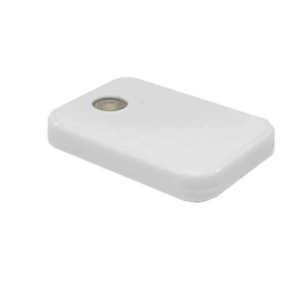

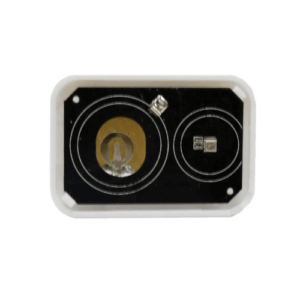

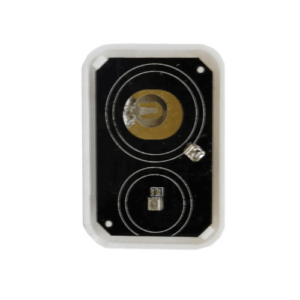

Bluetooth 4.2 BLE Module with AES Security and Ceramic Antenna – Enviro Forest

Bluetooth 4.2 BLE module with AES 128-bit encryption, 2.4 GHz frequency, ceramic antenna, and -20 dBm to 4 dBm output. Supports 1-2 Mbps transmission

SKU: EFOIAMS-250 Category:

Features

  • Flexible power management system
  • Built-in temperature sensor
  • Quadrature decoder
  • ANT expandable chip on chip
  • Activity tracking
  • Compact and easy integration
  • Low power design
  • Temperature sensor



Technical Specifications

Protocol Bluetooth 4.0, Bluetooth 4.2 Ble networking, ANT
Encryption security AES 2.4 GHz data 128-bit data encryption
Frequency 2.360 GHz to 2.500 GHz
Modulation method GFSK at 1 Mbps, 2 Mbps
Antenna ceramic antenna
Transmit power -20 dBm to 4 dBm
Acceptance sensitivity -96 dBm in Bluetooth mode
System off mode & 3V 0.3 uA
System off mode & 3V & 64kB Ram 0.7 uA
Voltage range 1.7 V to 3.6 V
System on mode 3V without RAM 1.9 uA
Working temperature -4 °F to 185°F (-20 ℃ to 85 ℃)
Output power -20 dBm to 4 dBm
Transmission speed 2 Mbps / 1 Mbps
