Features
- Replaced dry battery
- Color OLED 1.77 in screen

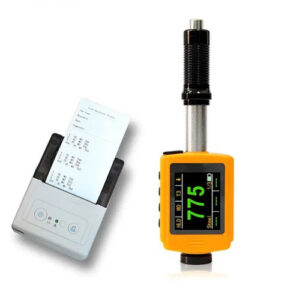

- Bluetooth connection printer
- Interchangeable D/DL impact device
- Pen types, no cable impact device and screen Integrated
- HRC, HRB, HV, HB, HS, HL and σb
Technical Specifications
| Display | 1.77 in color |
| Hardness Scale | HL, HB, HRB, HRC, HV, HS, Strength (σb) |
| Measuring Range | 200 HLD to 960 HLD |
| Impact Device | D / DL |
| Accuracy | ± 6 HLD (HLD= 800), Repeatability: 6 HLD (HLD = 800) |
| Measuring Direction | 360 degrees |
| Material | Steel& Cast Steel, Stainless Steel, GC IRON, NC IRON, Cast Aluminum alloy, Copper-zinc alloy, Copper-tin alloy, Brass, Forged Steel, Alloy Tool Steel |
| Resolution | 1 HL, 1 HV, 1 HB, 0.1 HRB, 0.1 HRC, 0.1 HS |
| Language | English, Chinese or as required |
| Data Memory | 1000 groups (each group includes 2 to 6 testing value and 1 average value) |
| Software | LMVIEW |

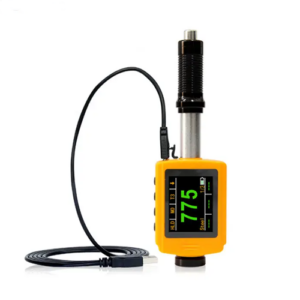

| Communication | USB port (standard) |
| Power | 2 AA batteries |
| Temperature | 50 °F to 122 °F (10 ℃ to 50 ℃) |
| Standard | GB/T 17394-1998, ASTM A956 |
