Overview

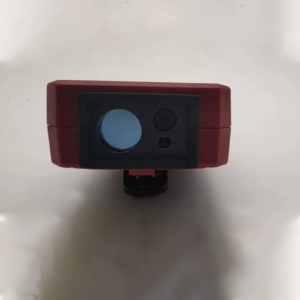

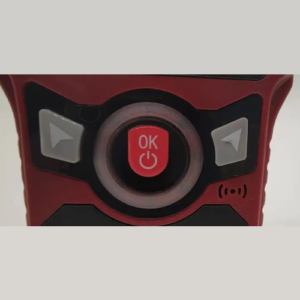

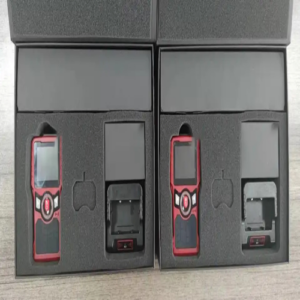

Enviro Forest remote methane gas leak detector handheld laser remote methane gas leak detector is a cutting-edge technology designed to detect methane leaks from significant distances. This next-gen leak detection device significantly enhances inspection efficiency and safety. Utilizing tunable laser spectroscopy (TDLS), it swiftly identifies gas leaks up to 60 meters away. It’s particularly effective for inaccessible areas like busy roads, elevated pipelines, tall towers, and more. This lightweight, energy-efficient tool supports extended continuous measurements, adapting to diverse environmental conditions. With rapid detection reactions in just 0.1 seconds and high accuracy, it can even be customized for data transmission methods like Bluetooth.
Features
- Intrinsically safe products
- The gas (methane) is selective, free from other gases, water vapor, dust interference
- Detection distance: detection of methane and methane-containing gas leakage at 60 meters
- Small size, light weight, easy to carry
- Low power consumption, can work for a long time
- Superior shockproof, waterproof, and dustproof performance
- Fast response, large measuring range, and high measuring accuracy
- It can realize data recording and Bluetooth transmission function.
- Detection method: harmonic laser spectrum theory
- Detection of gas: CH4 (NH3 / HCL / C2H6 / C3H8 / C4-C6 optional)
- Sensor type: infrared laser
- Self-test function comes with self-test and calibration functions, without the need for daily calibration.
Technical Specification
| Concentration Measurement Range | (0 To 99,999) ppm·m |
| Sensitivity Detection Distance | |
| – 0-30m | 5 ppm-m |
| – 30-60m | 10 ppm-m |
| Response Time | ≤ 0.1s |
| Effective Distance | 0 to 60m |
| Concentration Display Resolution | 1 ppm·m |
| Measurement Accuracy | ±10% @ 100 ppm-m (2m) |
| Display Method | LCD |
| Dimensions and Weight | |
| Host Size | 5.2 in x 2.91 in x 1.44 in. (132 mm × 74 mm × 36.5 mm) |
| Host Weight | 0.794 lb (360 g) |
| Housing Material | ABS + PC |
| Outer Covering Protection Rate | IP 65 |
| Explosion-Proof Form | |
| Intrinsically Safe | Ex ib II C T4 Gb |
| Laser Protection Class | |
| Laser Protection Class | Class IIIR |
| Applicable Environment | |
| Operating Temperature | -4 °F to 122 °F (-20 ℃ to 50 ℃) |
| Working Humidity | ≤ 99% |
| Work Pressure | 11.60 PSI to 16.83 PSI (80 kPa to 116 kPa) |
| Storage Temperature | -40°F to 158°F (-40 To 70℃) |
| Power Parameter | |
| Operating Voltage | 110 V AC to 240 V AC, 50 Hz/60 Hz |
| Working Time | ≥ 10h |
| Power Supply | Rechargeable Lithium Battery |
| Number of Batteries | 1 pc |
