Overview

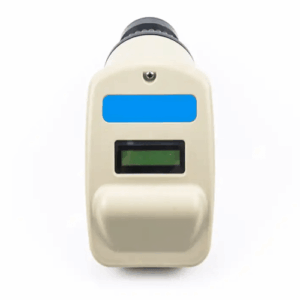

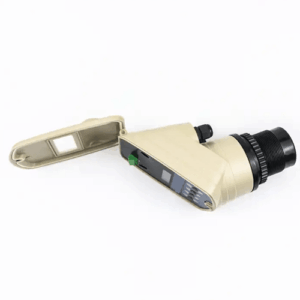

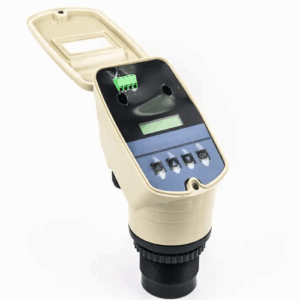

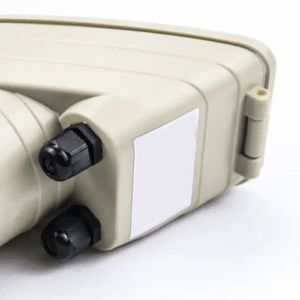

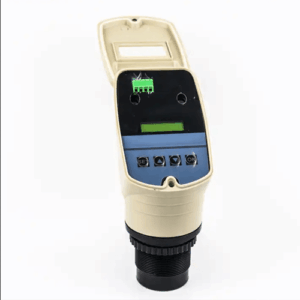

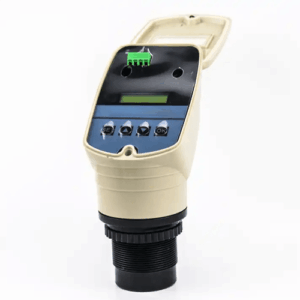

Enviro Forest ultrasonic level sensor is an intelligent non-contact level measuring instrument. It has automatic power adjustment, gain control, temperature compensation, adopts advanced detection and calculation technology, and has the function of suppressing interference signals, thereby fundamentally improving the measurement accuracy of the instrument and ensuring the authenticity of the measurement results. This product can be widely used for liquid measurement of various liquids and can be used for distance measurement.
Technical Specifications
| Probe type | Integrated, split, explosion-proof, anti-corrosion, and explosion-proof |
| Measuring range | 0 in to 0.78 in (0 m to 20 m) integrated, 0 in to 1.57 in (0 m to 40 m) split |
| Measuring accuracy | <0.25% (range <20 m), <0.5% (range >20 m) |
| Power supply | 24 V DC |
| Signal output | 4 mA to 20 mA |
| Display mode | Liquid level, distance (height) |
| Set output | Upper limit setting, lower limit setting |
| Protection class | IP 65, IP 67, IP 68 (optional) |
| Explosion-proof grade | Exia II CCT6 Ga, Exib II BT6 Gb |
| Process connection | Thread, flange (optional) |
| Process pressure | -14.50 PSI to 14.50 PSI 6.89 kpa |
| Process temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
