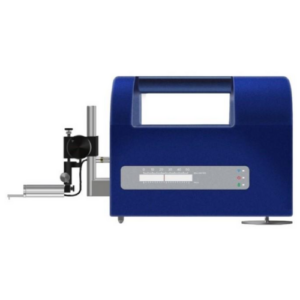

Surface Roughness Tester with Wide Measurement Range – Enviro Forest

Overview

Enviro Forest’s surface roughness tester with wide measurement range is designed to conform fully to international standards including ISO, DIN, JIS, and ANSI. This portable multi-purpose instrument evaluates the surface quality of parts across various parameters, offering roughness, waviness, and primary profile analysis. It supports measurements on planes, outer cylindrical surfaces, inner hole surfaces, and bearing channels. With a large measurement range, stable performance, and high accuracy, it is ideal for production sites, laboratories, and quality control facilities. The digital and graphical results are displayed on an industrial touch-screen pad, while data can also be transferred to a computer or printer for extended analysis.



Features

• Capable of measuring scratch depth

• Large 0.039 in (1000 µm) inductive sensor range (0.079 in (2000 µm) available)

• Measures Roughness profile, Waviness profile, Primary profile, Abbott curve, and Motif

• Supports two measurement methods: with guide head and without guide head

• Sensor and host connected via adjustable lifting frame without requiring a platform



Technical Specifications

Range	X direction	1.97 in (50 mm)
	Z direction	0.039 in (1000 µm), optional 0.079 in (2000 µm)
Resolution	X direction	0.000063 in (0.0016 µm) at ±0.002 in (±50 µm) to 0.00063 in (0.016 µm) at ±0.02 in (±500 µm)
Driver	Straightness	0.000039 in per 1.97 in (1 µm per 50 mm)
Carried Standards		JIS-82, JIS-87, JIS-94, JIS-01, JIS-13, ISO-84, ISO-97, DIN-90, ASME-95, GB-14
Technical  Parameter	Roughness Profile	Ra75, Rq, Rp, Rv, Rc, Rt, S, R3z, PPI, Ra, Rsk, Rku, Ry, Sm, RΔa, RΔq, Rz, Pc, Rλa, Rλq, lr, RSm, Rz94, RPc, RS, Rz.I, Rpm, HSC
	Waviness  Profile	WCA, WCC-q, WCC-p, WCC-v, WCC-m, WCC-Sm, WCA, WC-q, WC-p, WC-v, WCM, WC-Sm, WC-t, Wa, Wq, Wsk, Wku, Wp, Wv, Wz, Wc, Wt, WSm, WΔq, WPc
	Primary  Profile	Rsk, Rku, Rmax, Sm, Δa, Δq, Rz, λa, λq, lr, TILT A, AVH, Hmax, Hmin, AREA, Rz.J, Pa, Pq, Psk, Pku, Pp, Pv, Pc.I, Pt, PSm, PΔq, PPc, Pc
	Abbott Curve	Rk, Rpk, Rvk, Mr1, Mr2, V0, K, A1, A2
	Motif	NCRX, AR, R, Rx, NR, CPM, SR, SAR, AW, W, Wx, Wte, NW, SW, SAW, Rke, Rpke, Rvke, Mr1, Mr2, V0, K
Evaluation curve		Roughness, Waviness, Primary, Abbott curve, Motif
Characteristic curve		Abbott curve (Rmr(c), Rmr2(c), Rδc(c), tp(c), tp2(c), Htp(c)), amplitude frequency analysis, amplitude distribution
Form Removal Options		Global, first half, second half, center, 2 points, curve
Filter type		Gaussian, FFT, PC, DP, 2RC
Filtering  wavelength	λs	0, 0.0001 in (2.5 µm), 0.00031 in (8 µm), 0.00098 in (25 µm)
	λc	0.003 in (0.08 mm), 0.010 in (0.25 mm), 0.031 in (0.8 mm), 0.098 in (2.5 mm), 0.315 in (8 mm)
	λf	0.031 in (0.8 mm), 0.098 in (2.5 mm), 0.315 in (8 mm), 0.984 in (25 mm)
Evaluation length		Sampling length × number of samples (standard or custom mode)
Measurement speed		0.0020 in/s (0.05 mm/s), 0.0039 in/s (0.10 mm/s), 0.0197 in/s (0.50 mm/s), 0.0394 in/s (1.00 mm/s), 0.0787 in/s (2.00 mm/s)
Return speed		0.0020 in/s (0.05 mm/s), 0.0039 in/s (0.10 mm/s), 0.0197 in/s (0.50 mm/s), 0.0394 in/s (1.00 mm/s), 0.0787 in/s (2.00 mm/s)
Sensor	Model	Standard type
	Method	Differential inductance
	Range	±0.02 in (±500 µm), optional ±0.039 in (±1000 µm)
	Stylus	0.0002 in radius (5 µmR) diamond, 90°
	Force	7.5 mN adjustable (0.0017 lbf)
Operator  (Pad)	Display part	10-inch color IPS touch screen
	Data output	TF card/U disk/WIFI printing/PDF file
Power Supply		AC 220 V ±10% Built-in rechargeable battery (AC adapter charging) 8 hours charging time
Power Consumption		About 30VA (800 times can be measured after fully charged)
Dimension	Host Body	3.15 in x 15.43 in x 7.09 in (80 mm x 392 mm x 180 mm)
	Industrial Pad	9.65 in x 6.38 in x 2.68 in (245 mm x 162 mm x 68 mm)
	Weight	Net Weight 8.82 lb (4 kg),  Gross Weight 17.64 lb (8 kg)
