Overview

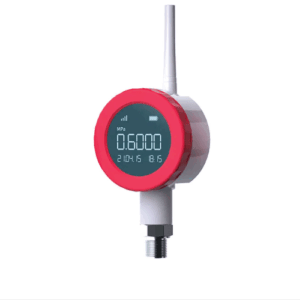

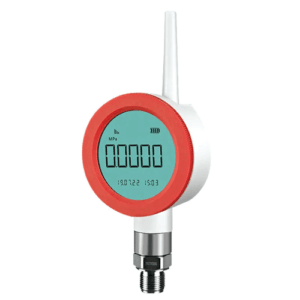

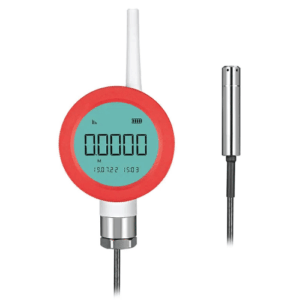

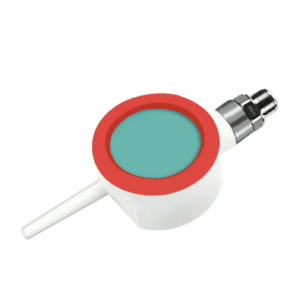

Enviro Forest Oil Pressure Sensor ensures precise and reliable measurements. With its robust construction, high sensitivity, and wide range, it accurately captures oil pressure variations. The sensor’s quick response time, easy integration, and customization options make it indispensable in industrial and automotive applications, providing essential data for optimal performance and safety.
Features
- Accurate Measurements
- Durable Construction
- High Sensitivity
- Wide Range
- Quick Response Time
- Easy Integration
- Customization Options
- Versatile Use
Technical Specifications
| Pressure | 0.145 MPSI, 0.0145 MPSI, 0.145 MPSI, 2.32 MPSI, 14.5 MPSI, 145 MPSI0.1 MPa TO 0 MPa,0.01 MPa ,0.1 MPa,1.6 MPa,10 MPa,100 MPa. |
| Configuration methods | Local USB, remote configuration |
| Power supply | Built-in lithium battery 3.6 V ,17 AH (Battery could be replaced） |
| Battery service life | 5 years (upload data once an hour) |
| Overload pressure | 200% F.S, 1450.38 PSI (10 MPa), 150% F.S 3625.94 PSI (25 MPa) |
| Communication | 4 G/NB-IOT/Lora/GPRS etc |
| Antenna | External Antenna |
| Display | 2.4 in large TFT LCD screen |
| Accuracy | 0.5% FS |
| Sim card | Built-in IoT SIM card You could inquiry LCP for service charge |
| Uploading information | Pressure,Temperature,signal and battery power |
| Power consumption | Standby current less than 80 uA, Data average sending current less than 150 mA |
| Power on mode | Button, Timer |
| Work temperature | −22 °F to 158 °F (-30 ℃ to 70 ℃) (medium No crystallization) |
| Power supply | Built-in lithium battery 3.6 V ,17 AH |
| Sampling interval | once per minute |
| Accuracy | 0.5 F. S |
| Temperature influence | 32.02 % F. S/°F (15% F. S/ ℃) |
| Protection level | IP 66 |
| Sensor material | The shell part of the sensor is stainless steel, Pressure diaphragm is 316 L |
