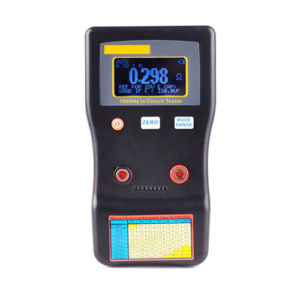

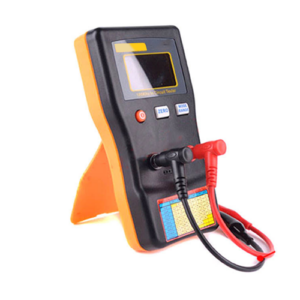

Name: Auto - Calibrating ESR Capacitance Meter with In Circuit Testing Capability – Enviro Forest - Enviro Forest
SKU: EFOACOHM-135

Auto – Calibrating ESR Capacitance Meter with In Circuit Testing Capability – Enviro Forest

Auto ranging capacitor ESR and low Ohm meter measuring ranges from 0.001 to 100.0R, support in circuit testing. Using true 100 KHz sine wave to measure the ESR value, which is equal to the testing method of capacitor manufacturer.

Features

Automatic calibration functionality
In-circuit ESR and capacitance measurement
High resolution of 0.001Ω at 1Ω range
True 100kHz sine wave testing signal
Auto-ranging capability
Dual terminals for fast inspections
Extended battery life over 80 hours

Technical Specifications

Measuring Range	>1 μF capacitance
Resolution	0.001 Ω at 1 Ω range
Accuracy	Up to 1%
Testing Voltage	<40 mV RMS
Open Circuit Voltage	0.15 V
Operating Current	0.02 A
Testing Frequency	100 kHz sine wave
Dimensions	3.94 in x 2.36 in x 1.97 in (10 cm x 6 cm x 5 cm)
Weight	0.66 lb (0.3 kg)
