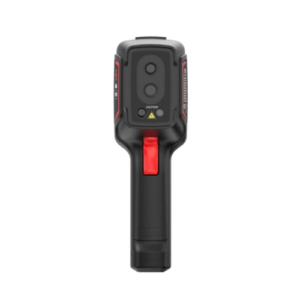

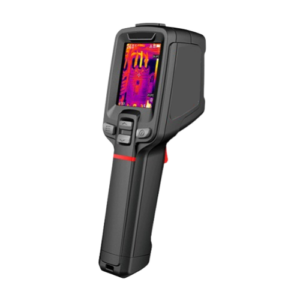

Advanced Handheld Thermal Imager with Dual Light Fusion Imaging – Enviro Forest

Overview

Enviro Forest Advanced Handheld Thermal Imager with Dual Light Fusion Imaging provides high-resolution thermal imaging for accurate diagnostics and inspections. It features a 256×192 infrared detector combined with a 200MP visible light camera. This device utilizes SharpIR composite imaging to deliver detailed dual light fusion thermal images and offers a 16-hour battery life with a 1-second startup time. With IP54 protection, a 56° × 48° field of view, and a 266:1 distance-to-spot ratio, it ensures precise temperature measurement from -4 °F to 302 °F. It operates focus-free, supports multiple measurement areas, and includes adjustable emissivity, reflection temperature, and full-screen temperature alarms.

Features

• High-resolution 256 × 192 infrared detector with 200MP visible light camera
• SharpIR composite imaging for detailed dual light fusion thermal images
• Ultra-long 16-hour battery life with 1-second startup time
• IP54 protection level for dust and water resistance
• Wide field of view: 56° × 48°, spatial resolution of 3.75 mrad
• Distance-to-spot ratio of 266:1 for precise long-range measurement
• No-focus operation with minimum imaging distance of 0.3m
• Temperature measurement range with automatic switching: -20 °C to 150 °C and 100 °C to 550 °C
• Accurate temperature readings with ±2 °C or ±2% accuracy (larger value applied)
• Multiple measurement areas (small/medium/large) and center point analysis
• Full-screen temperature alarms with image and flash alerts
• Adjustable emissivity, reflection temperature, and target distance for precise readings

Technical Specifications
