Overview

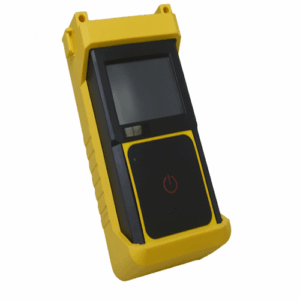

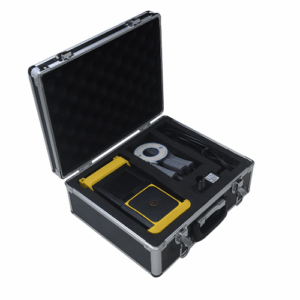

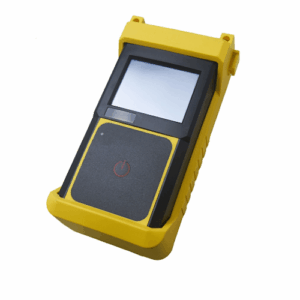

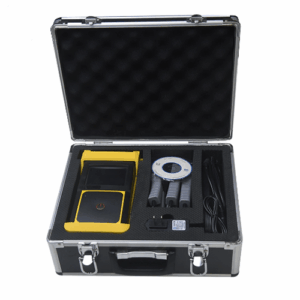

Enviro Forest AC clamp meter is used to measure three-phase electrical parameters. It can measure three-phase voltage, current, phase angle, frequency, power, power factor, and other electrical parameters with high accuracy. In the design of this instrument, a high-speed Cortex M3 processor and 24-bit high-speed ADC are used to measure and calculate the electrical parameters. It has a fully graphical interface, a true colour display resolution of 320 x 240, a friendly touch screen operation man-machine interface, and the instrument is easy to carry.
Features
- Simultaneous measurement of three-phase voltage or four-channel current
- Simultaneous measurement of three-phase AC voltage phase angle, current phase
- Measuring the Frequency and Phase Sequence of Power Grid
- Automatic identification of transformer windings, capacitance, and inductive load
- Hexagonal graph display, colour phase sequence analysis
- Measurement of Active Power, Reactive Power, Apparent Power, Three-Phase Power
- Data viewing and saving function
- Data Static Preservation Function
- 5 inch TFT color screen display with touch function
- Handheld three-phase voltmeter with lithium battery power supply and continuous
Technical Specifications
| Voltage | 1 V to 500 V |
| Current | 0.001 A to 10 A |
| Active power | 0.001 W to 5000 W |
| Reactive power | 0.001 VAR to 5000 VAR |
| Apparent power | 0.001 VA to 5000 VA |
| Frequency | 45 Hz to 65 Hz |
| Phase | 0 to 360 |
| Shape size | 4.92 cubic inches (320 mm3 x 254 mm3 x 100 mm3) |
| Weight | 7.27 lb (3.3 kg) |
