Overview

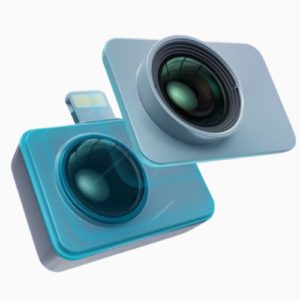

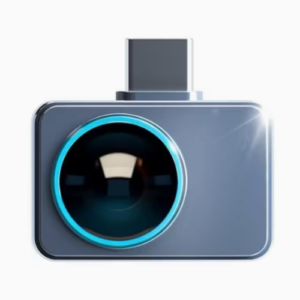

Enviro Forest Compact Handheld Infrared Thermal Imager provides accurate thermal measurements with ±2°C (±3.6°F) PCB precision and 256×192 IR resolution. It features a 25Hz frame rate, 56°×42.2° field of view, and supports Android 6.0+ and iOS 11+. This device is lightweight and portable, ideal for inspection and diagnostics, with 5℉~131℉ (−10℃~55℃) operating temperature and up to 8 hours battery life.
Features
- Precise infrared temperature measurement ±3.6°F (±2°C)
- 256×192 @12μm IR resolution for clear imaging
- 25Hz frame rate for smooth monitoring
- Wide field of view: 56°×42.2°
- Lightweight and compact design (0.32 oz, 1.06 × 0.71 × 0.39 in)
- Long battery life: 300–480 minutes
- Compatible with Android 6.0+ and iOS 11+
- Fast response with NETD ≤40 mK @25°C, F#1.0
Technical Specifications
| IR Resolution | 256×192 @12 μm |
| Temperature Accuracy | ±3.6 °F (±2 °C) |
| NETD | ≤40 mK @25°C, F#1.0 |
| Power Consumption | 0.33 W |
| Frame Rate | 25 Hz |
| Field Of View (H×V) | 56° × 42.2° |
| Battery Life | 5–8 hr (300–480 min) |
| Supported System | Android 6.0+ / iOS 11+ |
| Weight | 0.32 oz (9 g) |
| Size (L×W×H) | 1.06 × 0.71 × 0.39 in (27 × 18 × 9.8 mm) |
| Operating Temperature | 5–131 °F (−10–55 °C) |
| Storage Temperature | −40–185 °F (−40–85 °C) |
