Overview

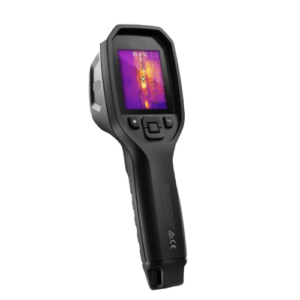

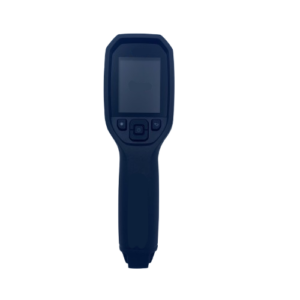

Enviro Forest Compact Handheld Thermal Imager with MSX and Laser Targeting delivers precise temperature measurement in a portable, easy-to-use package. It features a 160×120 infrared sensor with MSX imaging, overlaying visual temperature data for detailed inspection. This device offers high thermal sensitivity (<70 mK), a wide 57° × 44° field of view, and multiple color palettes for customizable thermal display. Focus-free operation and a class 1 laser ensure accurate targeting, while 4 GB internal storage preserves images and data. Adjustable emissivity, atmospheric compensation, and user-friendly settings, along with a wrist strap, USB cable, and carry pouch, make it a versatile tool for thermal diagnostics.
Features
- 160×120 IR resolution with MSX imaging and visual temperature overlay
- High thermal sensitivity (<70 mK) for precise detection
- Wide 57° × 44° field of view for comprehensive area scans
- Multiple color palettes for customizable thermal display
- Focus-free design for quick and easy use
- Class 1 laser for accurate temperature targeting
- Large 4 GB internal storage for saving images and data
- Adjustable emissivity and atmospheric compensation for precise measurements
- User-friendly settings including unit conversion, language, and screen brightness
- Portable kit with wrist strap, USB cable, and carry pouch
Technical Specifications
| IR Resolution | 160 × 120 pixels |
| Thermal Sensitivity / NETD | <70 mK |
| Field of View (FOV) | 57° × 44° |
| Image Modes | MSX (Multi Spectral Dynamic Imaging), Visual with Temperature Reading |
| Detector Pitch | 12 µm |
| Spectral Range | 7.5 – 14 µm |
| Image Frequency | 8.7 Hz |
| Display | 320 × 240 pixel, 2.4 in color LCD |
| Single Package Size | 7.87 × 9.84 × 5.91 inches (20 × 25 × 15 cm) |
| Measuring Range | -13°F to 716°F (-25°C to 380°C ) |
| Single Gross Weight | 52.91oz (1.500 kg) |
