Overview
Enviro Forest Portable Digital Wide Coating and Material Gauge adopts two thickness-measuring methods: magnetic induction (ferrous) and eddy current (non-ferrous). It can rapidly, nondestructively, and precisely measure the thickness of non-magnetic coating on magnetic metal substrate, and the thickness of non-conductive coating on non-magnetic metal substrate.
Features
- Two operation principles are adapted: magnetic induction (ferrous) and eddy current (non-ferrous) to take non-destructive measurements

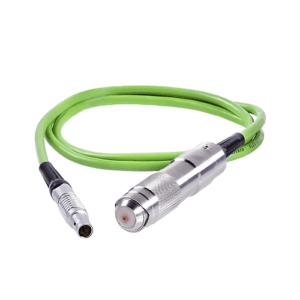

- 6 types of probes are available for different applications
- Features two working modes: DIRECT and BATCH& two measuring ways: CONTINUE and SINGLE
- Statistics include the mean, maximum, minimum, test numbers and standard deviation.
- Memory of 500 data
- Two calibration methods for better correction

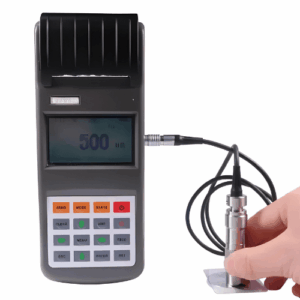

- Integrated with printer to print the statists values if needed
- Low battery indication and error alarm
- Backlight for the screen
- Auto or manual shutdown
Technical Specifications
| Standards | DIN,ISO,ASTM,BS |
| Calibration | Zero and foil calibration |
| Interface | USB2.0 |
| Statistic | Number of measurement, mean, standarddeviation, maximum and minimum |
| Data Memory | 500 readings |
| Limits | Adjustable with alarm |
| Power | Li rechargeable battery |
| Operating Environment | Temperature: 32 °F to 104 °F (0 ℃ to 40 ℃) |
| Humidity: 20% to 90% | |
| No strong magnetic field | |
| Dimensions | 8.46 in x 3.31 in x 1.65 in (215 mm ×84 mm ×42 mm) |
