Overview

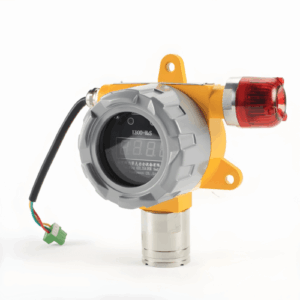

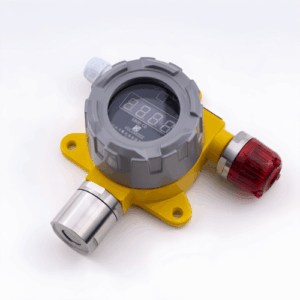

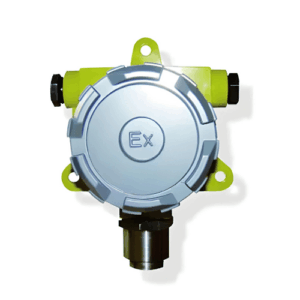

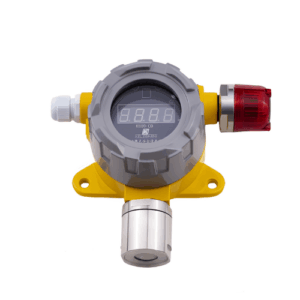

Enviro Forest Ammonia Gas Detector provides comprehensive monitoring of combustible, toxic gas hazards in potentially explosive atmospheres, indoors and outdoors-and is marked by installation ease and flexibility, user-friendly operation and cost-effective gas monitoring.
Features
- Providing digital LCD displayer, alarm facility with sound and light, etc
- Supporting 4 to 20 mA analog signal output (DC 24 V)
- Connecting 3 – core shield cable, 3 x 1 mm
- Special transmitter mounting kit
- Ambient temperature: -4°F to 122 °F (-20 °C to 50 °C)
- Explosion-proof grade: ExdIICT6
- High sensitivity, short response time and good stabilization
Technical Specifications
| Power Supply | 24 VDC |
| Output Signal | 4 to 20 mA standard industrial signal output |
| Display | Backlight LED |
| Relative Humidity | 15 % to 90 % RH (non-condensing) |
| Atmospheric Pressure | 86 to 106 Kpa |
| Explosion-Proof Grade | Exd IICT6 |
| Detection Gas | NH3 |
| Range | 0 to 100 ppm |
| Accuracy | ± 5% (F.S) |
| 90% Response Time | ≤ 50 s |
| Min Readout | 1 ppm |
| Low Or High Alarm | 25 ppm or 50 ppm |
| Operating Temperature | -4 °F to 122 °F (-20 °C to +50 °C) |
