Features
- Using imported high precision Infrared principles sensor
- LCD displays gas type, unit, concentration, max values, time, and temperature precisely
- Gas concentration unit PPM, mg or m3 can quickly switch display
- Built-in micro sampling pump, the pump suction size ten stalls adjustable
- Explosion proof certification, proof grade: Exia II CT4
Technical Specifications
| Gas Detected | NH3 Ammonia |
| Detection Principle | Electrochemical principles |
| Measure Range | 0 PPM to 100 PPM, 200 PPM, 500 PPM, 1000 PPM |
| Resolution | 0.01 ppm, 1 ppm |
| Sampling Method | Pump suction, flow up 1L or min, pump suction size ten stalls adjustable |
| Precision | 2 % |
| Data Logger | 100,000 sets of data can be stored, storage space available set, minimum 5 S, can be browse |
| Response Time | ≤ 10 S |
| Repeatability | ≤ ±1 % |
| Zero Shift | ≤ ±1 % (F.S or Year) |
| Operating Language | Support in English |
| Explosion Proof | Exia Ⅱ CT4 |
| Alarm Mode | Sound, light, vibration |
| Recovery Time | ≤ 10 S |
| Linearity Error | ≤ ±1 % |
| Display | LCD dot matrix display technology |
| Gas Unit | Support for multiple gas unit switch display |
| Humidity | 0 % RH to 95 % RH |
| Degree Of Protection | IP66 |

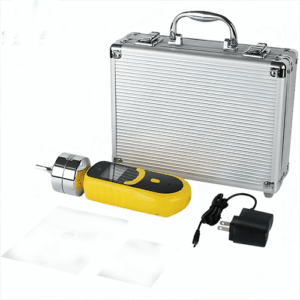

| Standard | 1 host computer, 1 charging plug, 1 aluminium alloy packing box, 1 manual, |
| Optional | Data download (EXCEL format) function, detachable needle, hose, holster, waterproof and dust proof filter, high temperature probe (up to 2192 degrees) |
| Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Dimensions | 8.07 in × 2.95 in × 1.26 in (205 mm x 75 mm x 32mm) |
| Weight (Net Or Gross) | 0.73 lb (0.33 kg) |
