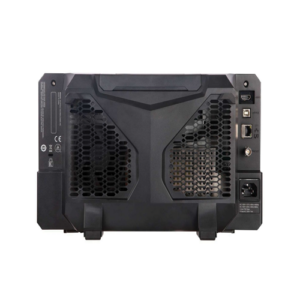

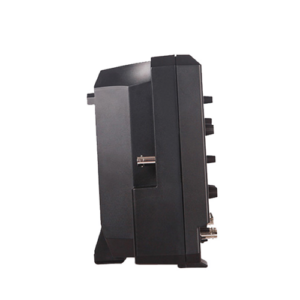

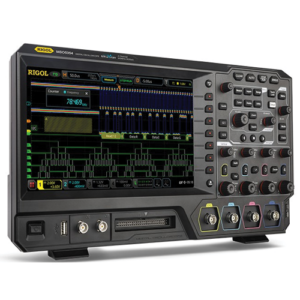

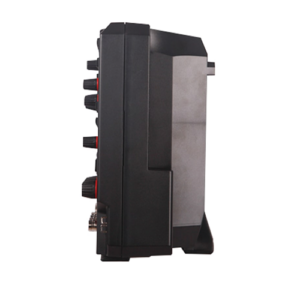

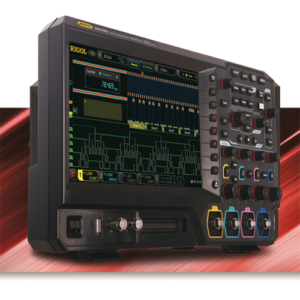

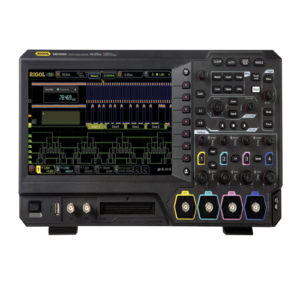

Name: Enviro Forest Digital Mixed Signal Oscilloscope - Enviro Forest
SKU: EFOMOS-109

Overview

Enviro Forest Digital Mixed Signal Oscilloscope offers four analog input channels and 16 digital channels for comprehensive signal analysis. With advanced triggering options, a large display, and extensive measurement features, it is suitable for various applications. The oscilloscope provides PC connectivity for remote control and data analysis. It is a versatile tool designed for electronics testing, circuit analysis, and debugging, making it a reliable choice for engineers and technicians in the field.

Features

Provides four analog input channels, enabling simultaneous capture and analysis of multiple signals
Features a bandwidth of 100 MHz, suitable for a wide range of electronics and electrical engineering applications
Includes 16 digital channels for capturing and analyzing digital signals and protocols
Offers a large display screen for clear visualization of waveforms and measurement results
Provides advanced triggering options, such as edge trigger, pulse width trigger, and pattern trigger
Offers a wide range of measurement functions, including voltage, time, frequency, and more
Can be connected to a PC via USB or LAN interfaces, with software solutions for remote control and data analysis

Technical Specifications

Max. Memory Depth	200 Mpts
Max. Waveform Capture Rate	≥ 500,000 wfms/s
Hardware Real-time Waveform Recording and Playing	≥ 450,000 wfms/s
No. of Input/Output Channels	16 input digital channels (PLA2216 probe option is required to be ordered) Dual-channel arbitrary waveform generator output (required to install the MSO5000-AWG option to activate the software function)
Sampling Mode	Real-time sampling
Max. Sample Rate of Analog Channel	8 GSa/s (single channel), 4 GSa/s (half-channel), 2 GSa/s (all channels)
Peak Detection	Under all the time base settings, capture 500 ps glitches
LCD Size and Type	9-in (228.6) capacitive multi-touch screen/gesture enabled operation
Display Resolution	1024 × 600 dots
