Overview

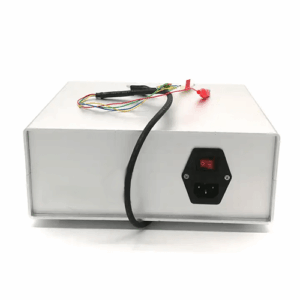

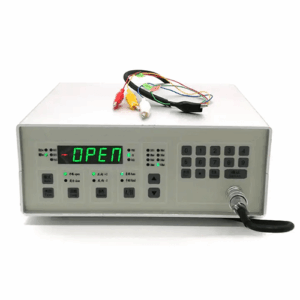

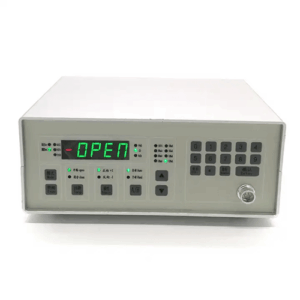

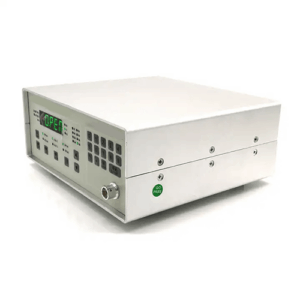

Enviro Forest digital ohmmeters multi-purpose comprehensive measuring device for measuring DC resistance using the four-terminal measurement principle. It can measure resistor body resistance, low and medium resistance of metal conductors, and switch-type contact resistance.
Features
- Test result classification prompt function
- Optional intelligent analysis PC software
- Easy operation and stable performance
- Various functions and easy selection
- Instrument functions are easy to expand
Technical Specifications
| Resistance Range | 10.0 x 10-6 Ω to 200.0 x 103 Ω |
| Resolution | 1.0 x 10-6 Ω to 0.1 x 103 Ω |
| LED Display | Resistance. Correction factor |
| Test Mode | Single electrical measurement |
| Error | 0.5% (Standard samples) |
| Full-scale Display | 200.0, 2.000, 20.00 |
| Normal Range | kΩ-cm or ◊,Ω-cm or ◊,mΩ-cm or ◊ |
| Maximum Extended Range | kΩ-cm or ◊,Ω-cm or ◊,mΩ-cm or ◊ |
| Basic Error | ±2%FSB ± 4LSB,±1.5%FSB ± 4LSB,±0.5%FSB ± 2LSB,±0.5%FSB ± 4LSB |
| Working Power | 220 V (110 V) ± 10%, f = 50 Hz ± 4%, Pw ≤ 5 W |
| DC Voltage | 5 V, 12 V |
| Temperature | 32 °F to 104 °F (0°C to 40 °C) |
| Size | 9.64 in x 8.66 in x 3.74 in (24.5 cm x 22 cm x 9.5 cm) |
| Weight | 7.71 lb (3.5 kg) |
