Overview

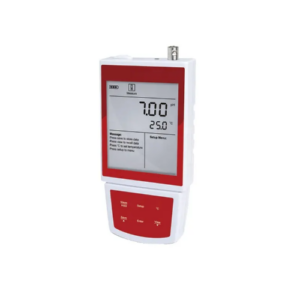

Enviro Forest Digital pH and Ion Conductivity Tester is equipped with a standard pH electrode (Circular glass bulb) used to measure the pH of non-viscous, non-high temperature liquids, e.g., tap water, drinking water, rainwater, etc. F series testers are equipped with a flat surface pH electrode used to measure the pH of semisolid substances, e.g., fruits, bread, creams, etc.L series testers are equipped with a long-reach pH electrode used to measure the liquids in the test tube. PHscan 40 tester is equipped with a standard BNC connector, which can use any pH electrode with BNC plug.
Features
- High accuracy at 0.1 pH
- Designed for acid testing applications
- pH ranges from 0.0 to 14.0 pH
- Calibration at 2 points
- Equipped with a 6-pin connector
- Lightweight at 0.22 lb (100 g)
- Compact packaging size: 12.8 in x 4.88 in x 10.63 in (325 mm x 124 mm x 270 mm)
- Manual hold function for convenience
Technical Specifications
| pH Range | -2.00 pH to 16.00pH | -2.000 pH to 20.000pH |
| pH Accuracy | ±0.01pH | ±0.002pH |
| Resolution | 0.01pH | 0.1 pH, 0.01 pH, 0.001 pH, Selectable |
| Calibration Points | 2 points | 1 point to 5 points |
| Calibration Solutions | USA (pH4.01/7.00/10.01) | USA (pH1.68/4.01/7.00/10.01/12.45), NIST (pH1.68/4.01/6.86/9.18/12.45), DIN (pH1.09/4.65/6.79/9.23/12.75) or User-defined |
| Temperature Compensation | 32°F to 212°F (0°C to 100°C) Manual or Automatic | 32 °Fto 212 °F(0°C to 100°C) Manual or Automatic |
| mV Range | -1999 mV to 1999 mV | -1999.9 mV to 1999.9 mV |
| mV Accuracy | ±1mV | ±0.2mV |
| Resolution | 1mV | 0.1, 1mV, Selectable |
| Calibration Points | 1 point (Only for Relative mV mode) | |
| Ion Concentration Range | 0.001ppm to 19999ppm, mg/L, mol/L (Refer to the range of ISE) | |
| Ion Concentration Accuracy | ±0.5% F.S (Monovalent), ±1% F.S (Divalent) | |
| Calibration Points | 2 points to 5 points (0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000ppm, mg/L, mol/L) | |
| Temperature Range | 32°F to 212°F (0 °C to 100 °C) | 32°F to 221°F (0 °Cto 105 °C) |
| Temperature Accuracy | ±1.8 °F (±1 °C) | ±0.9°F (±0.5°C) |
| Resolution | ±1.8 °F (±1 °C) | |
| Hold Function | Manual | |
| Memory | Stores up to 50 data sets | Stores up to 500 data sets |
| Output | USB Communication Interface | |
| Connector | BNC | |
| Power Requirements | 1×9 V/800 mA battery | 3×1.5V “AA” batteries (Standard) or DC5V power adapter (Optional) |
| Dimensions(W*D*H) | 7.2835 ins x 3.4646 in x 1.2598 in (185 mm x 88 mm x 32mm) | 6.6929 in x 3.3465 in x 1.1811 in (170 mm x 85 mm x 30 mm) |
