Features
- High right electroluminescent, strength light, weak light and sunlight viewable
- 32 independent sets of parameters can be set

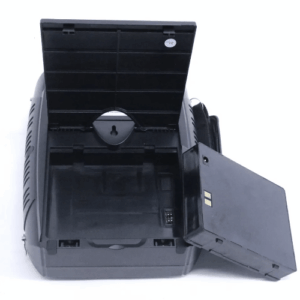

- Large capacity Li battery, low power consumption design, 20+ hrs run time
- Can be connected to the printer, print inspection report and wave
- Has auto-calibration function for normal probe, angle probe, convenient to use
- Square wave pulse generator, amplitude and pulse width can be adjusted, suitable to test the defects of work piece with different materials and depth
- Peak value in the gate can be captured automatically
- DGS(AVG) curve suitable to inspect forged piece etc
- A-scan and B-scan to be selected
- Based on the curve surface diameter to calibrate the flaw location by the curve surface calibration function.
Technical Specifications
| Scan Range | 0 in to 5.98 in (0 mm to 10000 mm) |
| Velocity range | 1000 m/s to 9999 m/s |
| Gain | 0 dB to 110 dB |
| Pulse Pattern | square |
| resolution | > 40 dB |
| Humidity | 20 % |
| Linear rejection | 0 % to 80 % |
| Pulse width | 50 ns to 100 ns |
| Display delay | -20 s to 3400 s |
| Sensor zero offset | 0 s to 99.99 s |
| Repetition rate | 10 Hz to 1000 Hz |
| Vertical linearity deviation | < 3 % |
| Weight | 4.87 lb (1.7 kg) |
| Size | 9.87 in x 2.89 in x 7.674 in (250 mm x 80 mm x 150 mm) |
