Overview

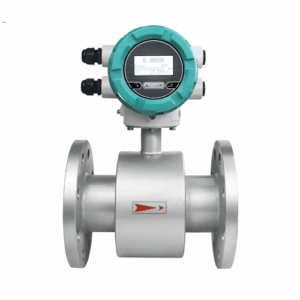

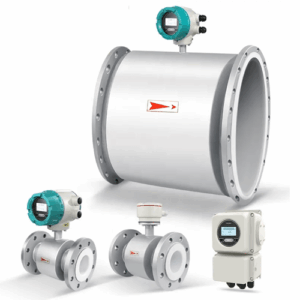

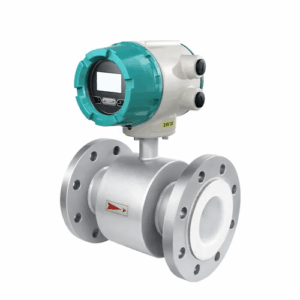

Enviro Forest electromagnetic flow meter is a high quality, high-accuracy flow meter configurable flow meter used for multiple purposes such as mechanical welding integration, flow calibration and measurement, and more.
Features
- 8 measurement units
- SGS, CE certified
- High frequency, anti-interference intelligent converter
- Moister-proof, salt-proof, and more
- Stable and accurate
- Two connection methods
Technical Specification
| Nominal Diameter | Pipe PTEE lining: DN 10 to DN 500Pipe Rubber lining: DN 65 to DN 1200 |
| Precision level | ±0.5% or ±1% |
| Measured repeatability error value | ±0.1% |
| Rated working pressure | (87.02 PSI (5.9 bar) 145.03 PSI (9.99 bar) 232.06 PSI (15.9 bar) 580.15 PSI (39.9 bar) |
| Velocity range | 11.81 in/s to 19.68 in/s (0.3 m/ s to 0.5m/s) |
| Signal output | 4 mA to 20 mA, pulse, RS485 |
| Power supply | AC 220 V, DC 24 V |
| Power consumption | ≤20 W |
| Installation requirements for straight pipe segments | Upstream: ≥10 DNDownstream: ≥5 DN |
| Connection type | Flange, Thread, Clamp |
| Protection Level | IP65 (IP68 can be customized) |
| Environment temperature | -13 °F to 140 °F (-25 °C to 60 °C) |
| Medium Temperature | Conventional rubber lining: -4 °F to 140 °F (-20 °C to 60 °C)PTEE lining: -4 °F to 248 °F (-20 °C to 120 °C) |
