Overview

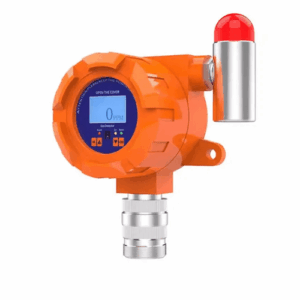

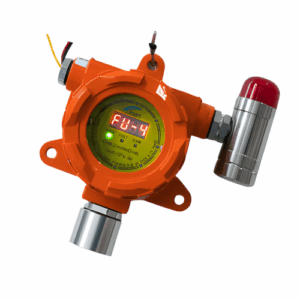

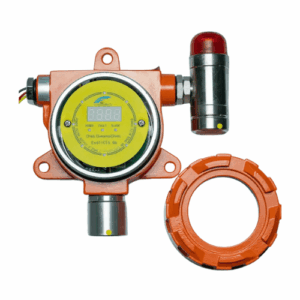

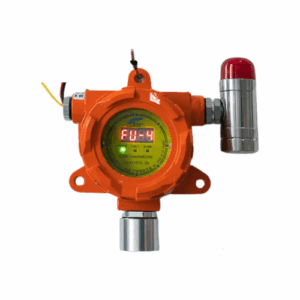

Enviro Forest fixed ammonia gas detector can detect any combustible gas like butane propane acetylene, lpg, natural gas, CNG, the ethanol sensor is with explosion proof shell to collects and detects the gas concentration on the spot, with an optional audible &visual alarm light, when the gas concentration exceed a preset alarm point, the c2h2 detector will make alarm immediately.
Features
- With relay output 10 A, can drive ventilator or solenoid valve.
- Monitor gas concentration in open air in the environment.
- Two stage alarm with sound and light
- Explosion proof design, proof grade Ex dII CT6, IP65 water dust proof.
- LED display, Independent acousto-optic alarm
- With zero calibration functions, makes the detection more accurate
- With 4 mA to 20 mA signal output, being compatible with PLC
Technical Specifications
| Measurable Gas | Combustible gas, toxic and harmful gas |
| Sampling | Natural diffusion |
| Battery | 24 V DC or 36 V DC ±10 % |
| Power | 12 V DC to 30 V DC |
| Output Signal (The User Can Decide As Follows According To Actual Needs) | A. Standard three-wire 4 ma to 20 ma analog signal output B. Two-wire 4 ma to 20 ma analog signal output (optional) C. Relay switch output (optional) d. RS485 bus output (optional) |
| Explosion Proof Mark | Exd IIC T6 gb |
| Battery | 24 V DC or 36 V DC ±10 % |
| Alarm Method | Light or sound |
| Ambient Temperature | Temperature -40 °F to 158 °F (-40 ℃ to 70 ℃) |
| Working Temperature | 50 °F to 131 °F (10 ℃ to 55 ℃) |
| Product Size | 7.2 in x 5.63 in x 4.21 in (183 mm x 143 mm x 107 mm) (display type 7.2 in x 1.69 in x 3.62 in (183 mm x 43 mm x 92 mm) （no display type) |
