Technical Specifications
| Gas Detected | Combustible gas, toxic gas |
| Detection Range | (0% to 100%) LEL |
| Resolution Ratio | 1% LEL |
| Measurement Error | Full Scale ±3% LEL |

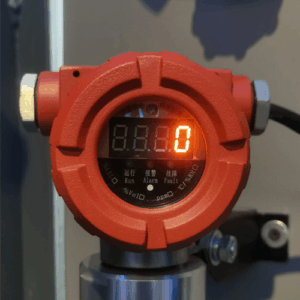

| Status Indication | LCD |
| Sampling Mode | Natural diffusion |
| Response Time | T 90 < 15 s |
| Power | DC 24 V ±10% |
| Output Signal | 4 mA to 20 mA or RS485 |
| Explosion Proof Grade | Exd IIC T6 Gb |
| Ingress Protection | IP 66 |
| Size | 5.55 in × 7.01 in × 4.92 in (141 mm × 178 mm ×125 mm) |
| Weight | 7.72 lb (3.5 kg) |
