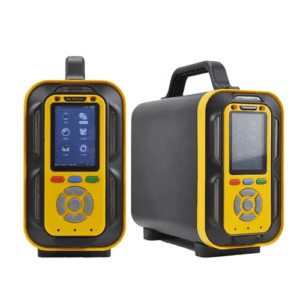

Features
- Modular design enhances accuracy
- Three modules, 6 gases each
- Max 18 gas detection
- Independent modules avoid interference
- Multi-pump system prolongs sensor life
- 5″ HD screen with wide angle
- High-grade sensor, intuitive display
Technical Specifications
| Gas Detected | CO |
| Detection Principle | Electrochemical principles |

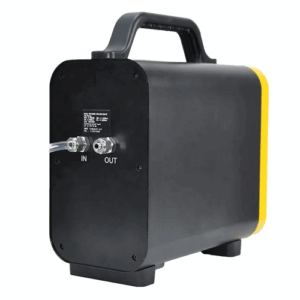

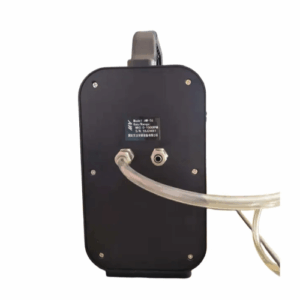

| Sampling Method | Built-in stable flow pump, each flow pump is equipped in each independent module, Pump flow is adjustable in ten steps, flow range: 0 to 800 mL/Min |
| Modular Structure | 3 detection modules, each module can be selected to detect up to 6 kinds of gases, And a total of 18 kinds of gases can be selected. The independence between the modules can solve the problem of mutual interference between gases to the greatest extent. |
| Concentration Unit | ppm, mg/m3, %VOL, %LEL, can be switched by one button, And the concentration value is automatically converted by the internal system |
| Display | 3.5 in colour display, resolution 320 x 480 |

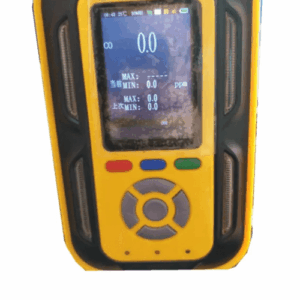

| Display Content | Gas formula, concentration data, unit of measure, gas curve trend, battery level, Time, temperature, humidity, pressure (optional), Pump status, wireless status, printer status, screen capture status |
| Display Mode | Multiple display modes selectable, multi-channel data mode, multi-curve mode, Multi-channel data + multi-curve mode, single channel + single curve mode |
| Detection Range | Humidity: 0% to 99% RH, resolution: 1% RH (optional) |
| Data Storage | Standard 8G SD card storage function (more capacity can be customized), storage interval can be set by itself, Can achieve local storage, view, delete historical data and alarm records, Can be directly connected to the computer through USB, quickly download Stored data, TXT document; with PC software to download, store, analyses, print data |
| Communication And Data | Output RS232, RS485 signal; with PC software to download, store, analyse, print data (optional) |
| Wireless Transmission | Bluetooth (with printer), ZigBee, built-in DTU wireless module (optional) |
| Built-in printer or external Bluetooth printer (optional) | |
| Print Content | Text, graphics, 1 D code, 2 D code, curve |
| Screen Capture Settings | The content displayed by the current host can be saved in the form of a BMP picture, And then the picture is exported to the computer through the USB cable for the user to record and reference. |
| Operating Language | Chinese and English |
| Battery Capacity | 3.7 V DC, 10000 mA rechargeable polymer battery with overcharge, Over discharge, over voltage, short circuit protection |
| Charging Interface | Micro-USB charging interface is designed to be charged anytime, Anywhere with common data lines and mobile power |
| Filter Device | Each module is equipped with a multi-layer filter to efficiently filter oil, water and dust. |
| Measure Range | 0 ppm to 500 ppm, 1000 ppm, 2000 ppm |
| Resolution | 1 ppm |
| Precision | 2% FS |
| Response Time | ≤ 10S |
| Repeatability | ≤ ± 1% |
| Zero Shift | ≤ ± 1% (F.S / Year) |
| Working Humidity | 0% to 95% RH (no condensation) (high humidity can be selected with filter drying device) |
| Explosion-Proof | Exic II CT3 Gc |
| Alarm Mode | Buzzer, red LED and alarm status prompt on the display, fault alarm, Pump abnormal alarm, battery low battery alarm, shutdown alarm, fall alarm (optional) |
| Recovery Time | ≤ 10s |
| Linearity Error | ≤ ± 1% |
| Degree Of Protection | IP 66 |

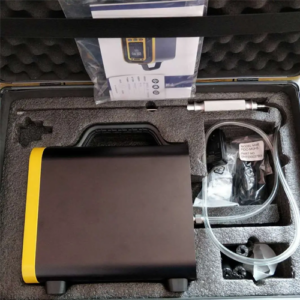

| Standard Accessories | Manual, certificate, warranty cards, charger, carrying case, The soot filter water vapor, air sampling rod, tube 23.6 in (600 mm) |
| Optional Accessories | Printer, pressure sensor, high temperature probe, dry filter |
| Temperature And Humidity | Temperature: -4 °F to 122 °F (-20 °C to 50 °C), resolution: 0.18 °F (0.1 °C) |
| Operating Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Weight | 8.16 lb (3.7 kg) |
