Overview

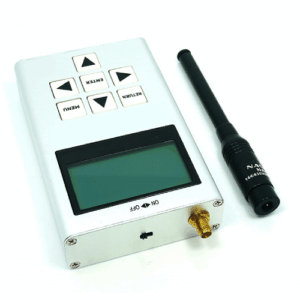

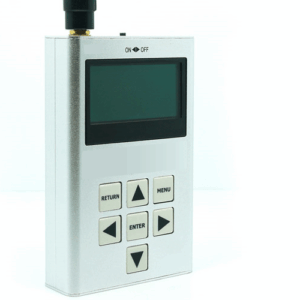

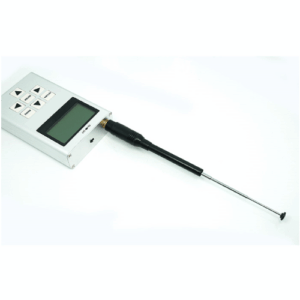

Enviro Forest handheld rf spectrum analyzer is a powerful, wideband fully programmable RF signal generator. As a standalone unit, it can generate CW and sweep signals by selecting embedded menu options. It can be extended with internal expansion modules for additional future band support and functionality.
Features
- Pocket size and light weight
- Solid aluminum metal case
- High capacity lipo for 16 hrs+ of continuous run
- Rf explorer for Windows PC client open source
- Wide band support
Technical Specifications
| Frequency Range | 24 kHz to 6000 MHz |
| Frequency Step | 1 kHz |
| Frequency Stability | 0.5 ppm |
| Standard SMA | 50 ohms connector |
| Programmable Amplitude with Included Internal Programmable Attenuator | -40 dBm to -30 dBm in 3 dB steps-10 dBm to 0 dBm in 3 dB steps |
| Switch Measurement Point Speed | <10 ms |
| Graphics | LCD, 128 x 64 pixels |
| Functional Modes | · CW signal generator at any frequency in the range· Sweep generator between any to frequencies in the range with selectable step size and speed |
| Screen Type | 2.9 in (7.36 cm) HD IPS capacitive touch screen |
| Expansion | Port expansion for future enhancements |
| Dimension | 4.45 in x 2.76 in x 0.98 in (113 mm x 70 mm x 25 mm) |
| Weight | 1.32 lb (0.6 kg) |
