Overview

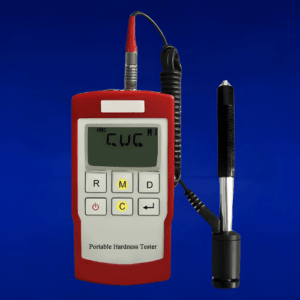

Enviro Forest HARTIP 2000 hardness tester is an innovative portable Leeb hardness tester with our new patent technology. Which make HARTIP 2000 a universal impact direction hardness tester. It is no need to set up impact direction when taking measurement by any angle. Therefore, HARTIP 2000 offers a linear accuracy comparing to the angle compensating method. HARTIP 2000 is also a cost saving hardenss tester and has many other features.
Features
- Auto-Recognition of Impact Direction for Error Avoidance
- High Accuracy: +/-2HL (0.3% @HL800)
- Dual Display: Leeb and Conversion Values
- Backlit Big LCD Display
- Ten Testing Materials, including Forged Steel
- Strength Conversion Value
- RS232 Interface for Micro-Printer Connection
- 999-Data Memory
- Customer Re-Calibration Capability
- Automatic Power On/Off for Convenience
- Economic and Convenient Design
- Packed in Waterproof Rigid Carrying Case
Technical Specifications
| Principle | Leeb hardness measurement |
| Accuracy | ±0.3% @ HL=800, Repeatability: ±2HL |
| Display | Digital LCD with backlight |
| Hardness Scale | HL/HRC/HRB/HB/HV/HS/σb |
| Measuring Range | HL170-960/ HRC17-69/ HRB13-101.7/ HB20-655/ HV80-940/ HS32-99.5 |
| Impact Device | D / D-DL 2-in-1 (External) |
| Impact Direction | Universal angle type |
| Materials | 11 common metal materials |
| Memory | 300 data can be stored and re-readable |
| Statistics Function | Calculated automatically |
| Recalibration | Allowed by user |
| Interface | RS232 to Micro-printer |
| Indicator | Low battery |
| Power Off | Auto |
| Power Supply | 1.5V AA alkaline battery x 2 |
| Working Environment | 18ºF to 104ºF ( -10 ºC to +40ºC ) |
| Standard | Conforming to ASTM A956 |
| Dimension (mm) | 4.88 in × 2.63 in × 1.18in ( 124 in x 67 in x 30 in ) |
| Net Weight (g) | 0.52 lb ( 240 g ) |
