| Measurement Parameter |
DC Resistance |
| Measurement Range |
0.01 μ Ω to 1200 MΩ |
| Test Current |
DC: under 1 A to 1 μ A, [LP ON]: 1 mA to 5 μ A |
| Basic Accuracy |
± 0.01 % rdg. ± 0.001 % f.s. (accuracy varies based on different ranges, please refer to manual for detailed accuracy description) |
| Test Speed |
Fast (2.2 ms); Medium (50 Hz: 21 ms, 60 Hz: 18 ms);Slow 1(102 ms); Slow 2 (202 ms) |
| Open Circuit |
DC 20 V (Range 10 k Ω), Maximum DC 5.5 V (Range to 1000 ohm), [LP ON]: ≤ 20 mV |
| Temperature |
Range: 14 °F to 211.82 °F (-10 ℃ to 99.9 ℃) Accuracy: ± 32.9 °F (0.50 ℃) |
| Correction |
Short-circuit clear zero for all ranges |
| Comparator |
10 bins sorting, output HIGH OR IN OR LOW sorting signal |
| Trigger |
Internal, IO, Manual, Bus Trigger |
| Other Function
|
Temperature compensation function, temperature conversion, cut-off voltage compensation, compensation (ABS, REF%), Keypad lock (OFF, menu locked, all locked), supply frequency setup (AUTO, 50 Hz, 60 Hz), judge sound setup, auto hold, average value, front panel save or read, DA output |

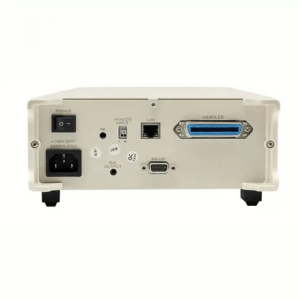

| Interface |
External IO interface, LAN interface,RS232 interface, analog output interface (optional) |
| Power Supply |
AC 100 V to 250 V, 50 Hz to 60 Hz, rated power: 40 VA |
| Dimension |
12.8 in x 8.5 in x 3.8 in (325 mm x 215 mm x 96.5 mm) |
| Weight |
8.8 lb (4 Kg) |
