Overview

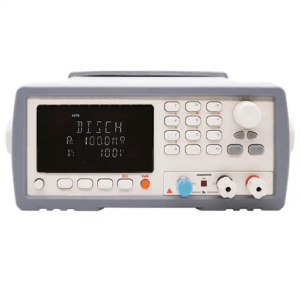

Enviro Forest high precision ohmmeters are MCU controlled measuring instruments for direct readout of resistance and current. The voltage applied to the device under test (DUT) is programmable from 1 to 1000 volts. A pass or fail indicator provides a visual display of test results based on a preset limit. It has high precision ohmmeters designed for measuring very high resistance and related parameters of insulation materials, electronic components, and electro-mechanical components.
Features
- Read values conveniently and quickly

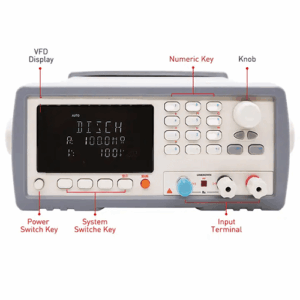

- Cursor key, Numeric keypad

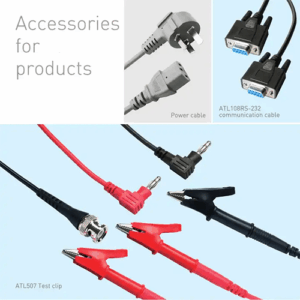

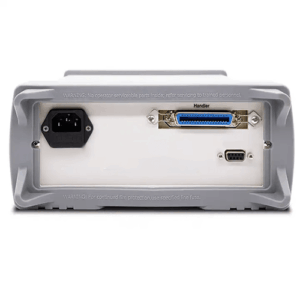

- Extension, communication, power socket fuse holder
Technical Specifications
| Parameter | Leakage current and insulation resistance |
| Output Voltage | (NC)1 V to 1000 V DC |
| Accuracy | 3% |
| Measurement Range | 100 kΩ to 10T Ω or 10 V: 100 kΩ to 100 GΩ 100 V: 1 MΩ to 1 TΩ or 1000 V: 10 MΩ to 10 TΩ |
| Max Reading | 9999 |
| Range | Automatic and Manual |
| Speed | 55 times or second,15 times or second,3 times or second |
| Adjustment | Open-circuit Zero to Adjust for each range |
| Result Display | Show, current, resistance, peak value, and sorting result |
| Charging Timer | 999.9 s |
| Comparator | 30 sets record, GD or NG Beep: GD, NG, OFF setting. |
| Others | VFD four color high-definition screen, keypad lock and data hold function |
| Power Supply | Voltage: 198 V AC to 240 V AC Frequency: 50 Hz Power: Max 30 V A |
| Dimension or Weight | 10.39 in x 4.21 in x 13.78 in (264 mm (Width) x 107 mm (Height) x 350 mm (Depth)) |
| Weight | 11.02 lb (5 kg) |
