| Bandwidth |
30 MHz to 125 MHz |
| Sample Rate （real time） |
500 MS/s to 1 GS/s |
| Horizontal Scale (s/div) |
5 ns/div to 100 s/div |
| Channels |
2 + 1 (external) |
| Display |
8 in (203.2 mm) color LCD (800 pixels × 600 pixels) |
| Record Length |
10K to 1M |
| Vertical Resolution (A/D) |
8 bits (2 Channels simultaneously) |
| Vertical Sensitivity |
5 mV/div to 5 V/div (at input), 2 mV/div to 10 V/div (at input) |
| Trigger Type |
Edge, Pulse, Video, Slope, Alternate |
| Trigger Mode |
Auto, Normal, Single |

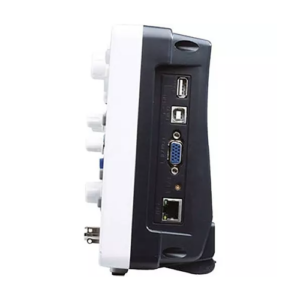

| Communication Interface |
USB host, USB device, Pass / Fail, LAN, VGA (optional) |
| Battery |
Not supported |
| Dimension (W×H×D) |
13.7 in × 6.69 in × 3.07 in (348 mm × 170 mm × 78 mm) |
| Weight (without package) |
3.3 lb (1.50 kg) |
