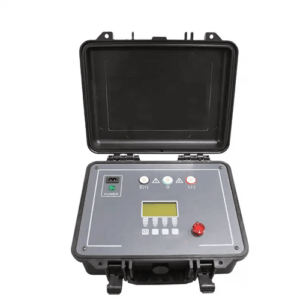

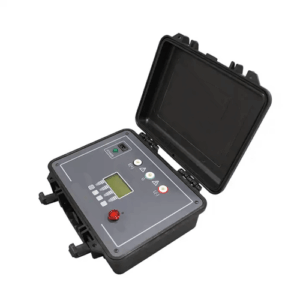

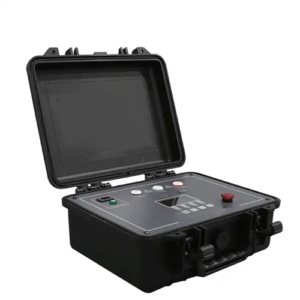

Enviro Forest Mega Ohm Meter

Name: Enviro Forest Mega Ohm Meter - Enviro Forest
SKU: EFO OHM-180

This Mega Ohm Meter has a measuring range of 0.1 M Ω to 400 GΩ, operating temperature of 14° F to 104° F, and current test range of 10 mA.

SKU: EFO OHM-180 Category: Insulation Resistance Testers

Technical Specification

Measuring Range	0.1 MΩ to 400 GΩ
Testing Voltage	0.5 KV, 1 KV, 2.5 KV, 5 KV, 10 KV
Display Type	Digital Only
Accuracy Class	±10%
Operating Temperature	14 °F to 104 °F (- 10 ℃ to 40 ℃)
Testing Voltage Range	0.5 KV,1 KV,2.5 KV, 5 KV,10 KV
AC Power	120 V ±10%, 50 Hz or 60 Hz ,20 VA
Voltage Measurement Accuracy	5% +3 V
Current Test Range	10 mA
Current Measure Precision	5% +0.2 nA
Capacitance Test Range	20 uF
Capacitance Testing Accuracy	15% +0.03 uF
Dimensions	17.7nin x 15.8 in x 9.1 in (450 mm x 400 mm x 230 mm)
