Features
- Configure flexibly up to 3 gas sensors plus 1 dust sensor
- Internal Sample Pump (the flow rate is adjustable)
- Current Date and Time display
- Wireless real-time communication with computer(optional)
- Two alarm set points; Alarm mode optional: L to H or H to H or L to L

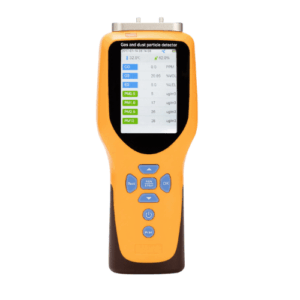

- 5-inch LCD HD color screen with IPS display
- Light weight, small, rugged IP-66 design
- Glove friendly buttons
- Up to 100,000 group data can be storage
- View historical data in a graph format or EXCEL format with Software
- Print data at site by micro printer(optional)
- 4000mA high-capacity polymer rechargeable battery
Technical Specifications
| Detection Range | Gas: Please refer to sensor list Dust particle: 0 to 9999ug or m3, 0 to 99999999PC orL |
| Resolution | Gas: Please refer to sensor list Dust particle: 1ug or m3,1PC or L |
| Scalable Gas Sensor | User can customize up to 3 gas sensors in any combination, please refer to the sensor parameters |
| Dust Sensor | Laser dust sensor (0.3 or 0.5 um, 1.0 um, 2.5 um, 10 um) |
| Humidity | Humidity detection range 0% RH to 100% RH |
| Detection Pattern | Pumping, the flow rate is adjustable. |
| Detection Accuracy | ≤± 3% F.S |
| Reaction Time | ≤ 20 S (T 90) |
| Detection Method | Real-time detection mode and timing detection, Cycle detection mode can be switch freely |
| Storage Method | Up to 92,400 groups data, user can view history data on the display. |
| Explosion Proof Sign | Exdll CT4 (IA) |
| IP Rating | IP66 |
| Power | 4000 mA high-capacity polymer rechargeable battery |

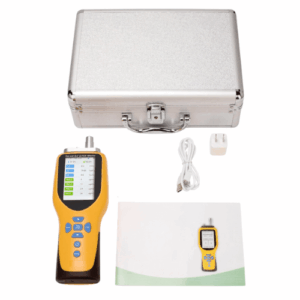

| Standard Accessories | Internal dust filter Portable aluminum Case User manual Certification USB charger + Data cable Calibration cover |
| Optional Accessories | Micro printer and connected cable Wireless transmitter and wireless receiver Vapor filter(external) Hose Sampling handle (stainless steel, approx 23.6 in (60 cm)) |
| Case Material | ABS + PC |
| Relative Humidity | ≤ 90% RH, Non-condensing |
| Operating Pressure | -30 Kpa to 100 Kpa |
| Temperature | -40 °F to 248 °F (-40 ºC to 120 ºC) |
| Dimensions | 10.03 in × 3.14 in × 2.34 in (255 mm × 80 mm × 60 mm) |
| Weight | 1.1 lb (0.5 Kg) |
