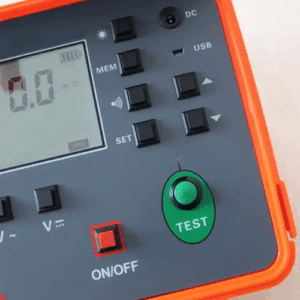

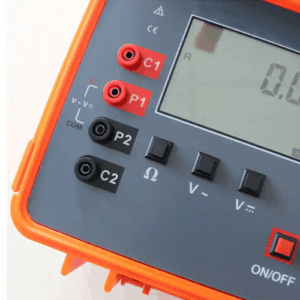

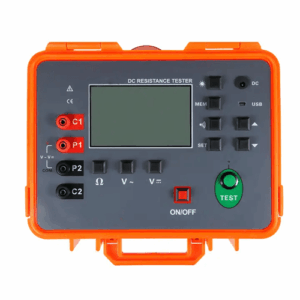

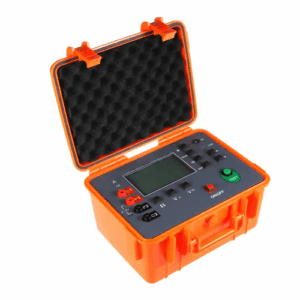

Enviro Forest OHM Resistance Tester

Name: Enviro Forest OHM Resistance Tester - Enviro Forest
SKU: EFO OHM-184

This Ohm Resistance Tester has a working temperature of 14° F to 104° F, resistance resolution of 0.0001 Ω, and AC voltage resolution of 0.1 V.

SKU: EFO OHM-184 Category: Insulation Resistance Testers

Technical Specification

DC Resistance Range	0.0001 Ω to 30.00K Ω Accuracy ±1% rdg ±5dgt
Resistance Resolution	0.0001 Ω
Test Method	Four-wire test
Test Current	≥1 A
Open Circuit Voltage	≤7 V
Capacity Factor	Measuring capacity factor≤15 W
DC Voltage Range	0.0 V to 1000 V DC Accuracy ±1.5% rdg ±5dgt
DC Voltage Resolution	0.1 V
AC Voltage Range	0.0 V to 750 V AC Accuracy ±1.5% rdg ±3 dgt
AC Voltage Resolution	0.1 V
Power	DC 6 V 4.5 Ah Large-capacity battery Continuous standby for more than 100 hours
Backlight	Controllable gray screen backlight, suitable for use in dim places
Display Mode	4-bit large LCD display, gray screen backlight
Communication Line	USB Communication Line 1PC
Power Consumption	Standby: 30 mA Max (backlight off)
Working Temperature	14°F to 104°F (- 10 ℃ to 40 ℃)
Instrument Size	10.91 in x 8.97 in x 6.02 in (277.2 mm × 227.5 mm × 153 mm)
Weight	5.3 lb (2397 g)
