Technical Specifications
| As Detected | CH4 Butane Methane HCN etc. |
| Detection principle | Catalytic Combustion, Electrochemistry |
| Install Method | Wall-mounted, piping type, flow-type (according to the detected environment) |
| Measure Range | Customized |
| Resolution | Customized |
| Precision | ≤± 3% F.S. |
| Signal Output | 4 MA to 20 MA, RS485, relay |
| Response Time | ≤1 0S |
| Recovery Time | ≤10 S |
| Repeatability | ≤±1% |
| Zero shift | ≤±1%(F.S/year) |
| Connection mode | G1/2 external thread explosion-proofflexible pipe |
| Temperature | -4°F to 122°F (-20 ℃ to 50 ℃) |
| Explosion-Proof | Ex dⅡCT6 |

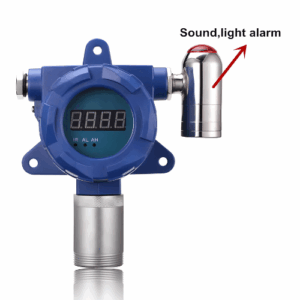

| Alarm | Sound, light |
| Dimensions | 7.0866 in × 1.9685 in × 3.5433 in (180 mm x 50 mm x 90 mm) |
| Linearity error | ≤±1% |
| Display | High light nixie tube display |
| Unit | ppm |
| Humidity | 0% to 90%RH |
| Degree of protection | IP65 |
| Operating time | 24 h |
| Weight | 3.5 lb (≤1.6 kg) |
