Overview

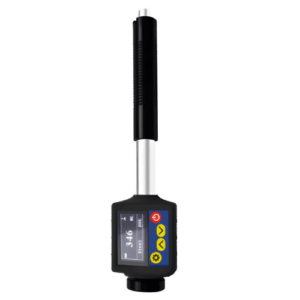

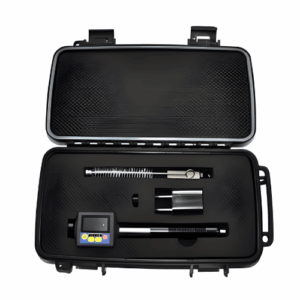

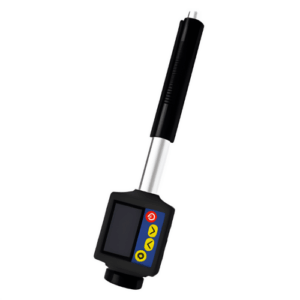

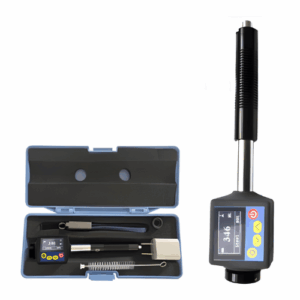

The Enviro Forest Pen Type Steel Hardness Tester is a portable measuring instrument that can measure the hardness of common metal materials quickly, without damage, and with high accuracy. It can be used in the laboratory and the engineering site. By setting the measurement conditions of the instrument, a variety of measurement needs can be met. This instrument can be widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields. It is a necessary instrument for non-destructive hardness testing of materials.
Features
- Smart, button-free operation with clear OLED display
- Small, portable, cable-free design for improved reliability
- Vibrant colors express personality
- Suitable for various conditions
- Highly accurate measurement circuit, ±0.5% error (HLD=800)
- Supports multiple hardness systems: HL, HV, HRA, HRC, HRB, HB, HS
- Large data storage, 270 groups with average values
- It is Hardness systems
- Convenient “Steel” material support
- Direct HB reading for forged steel
Technical Specifications
| Measuring Direction | Support 360º (vertical downward, diagonal downward, horizontal, diagonal upward, vertical upward) |
| Test Range | (170 to 960) HLD, (17.9 to 69.5) HRC, (19 to 683) HB, (80 to 1042) HV, (30.6 to 102.6) HS, (59.1 to 88) HRA, (13.5 to 101.7) HRB |
| Hardness System | Richter (HL), Brinell (HB), Rockwell B (HRB), Rockwell C (HRC), Rockwell A (HRA), Vickers (HV), Shore (HS) |
| Indication Error | ±0.5 % (HLD = 800) |
| Repeatability Of Indication | 0.8 % (HLD = 800) |
| Show | Industrial-grade 128 × 64 graphic dot matrix OLED LCD |
| Power | Rechargeable lithium battery |
| Continuous Working Time | About 20 hours |
| Applicable Materials | Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper-zinc alloy (brass), copper-tin alloy (bronze), pure copper, forged steel |
| Main Application Areas | Conducting failure analyses for bearings, vessels, and turbines. Managing heavy machinery, requiring small test spaces. Ensuring formal records, material classification, and swift inspections for large workpieces. |
| Dimension | 5.83 in x 1.18 in x 1.18 in (148 mm × 30 mm × 30 mm) |
