Overview

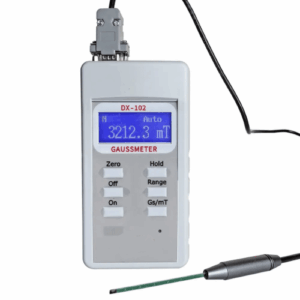

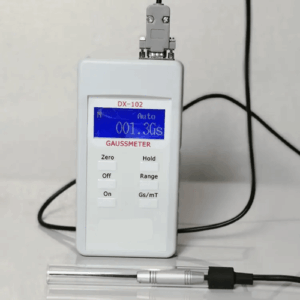

Enviro Forest portable digital gauss meter detector with The DX 102 portable digital Gauss meter can be used to measure the magnetic induction of various magnetic fields such as DC magnetic field, radiated magnetic field, residual magnetism, and earth magnetic field. Range: 30.0 mT, 300 mT, 3000 mT three gears, Battery: low voltage 6 V (4 pcs of AA batteries), Magnetic field minimum resolution: 0.1 mT (1Gs): Accuracy: 1.0% less than 1 T, 2.0% more than 1 T.
Function
- DC magnetic field and magnetic field peak value measurement
- Permanent magnet magnetic field distribution measurement
- The magnetizing measurement of the permanent magnets
- The magnetic field distribution measurement inside the DC coil
- The air gap magnetic field measurement of DC electromagnet
- Normal DC magnetic field measurement.
Features
- Direct reading of magnetic field
- Direct displaying of the north and south pole (N or S) of magnetic field
- A key of zeroing
- mT / Gs unit switch
- Easy operation, without calibration
- The battery can be used for long time
- LCD backlight
Technical Specifications
| Power source model | DX to 102 |
| Range | 0 T to 0.3 T to 3 T |
| Accuracy | 1.0% (corresponding to full range of each gear) |
| Resolution | 0.1 Gs |
| Function Description | peak maintenance function |
| Relative Humidity | 20% to 80% (without condensation) |
| Display Mode | 180°visual OLED lattice screen |
| Display Unit | Gs, mT, kA/m |
| Polarity Measurement | The N, S pole can be judged by “+” “-” |
| Ambient Temperature | (0 ℃ to 40 ℃) 32 °F to 104 °F |
