Overview

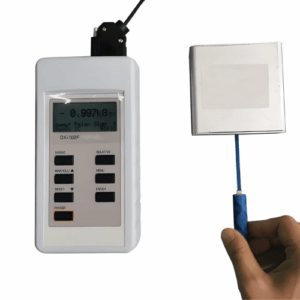

Enviro Forest portable electromagnetic radiation detector is used for measuring the surface magnetic field of permanent magnets and the working magnetic field of DC motor and magnetic separators.
Features
- White backlight FSTN LCD display
- Automation calibration zero
- Charging using standard USB interface
- Provide complete command set
- Temperature coefficient
- Universal all-copper/glass fiber package
Technical Specifications
| Test Resolution | 10 G, 1 G, 0.1 G |
| DC Accuracy | (2% reading +0.05% range) at 77 °F to 50 °F (25 °C to 10 °C) |
| Rate Of Reading | 10 readings / s |
| AC Range | ±3.6 kG, ±1.2 kG, ±120 G RMS |
| AC Display Resolution | 2 ¾, 3 ½, bit |
| AC Accuracy | ±3% reading at 77 °F to 50 °F (25 °C to 10 °C) (30 Hz to 10 kHz, sinusoidal wave) |
| Rate Of Reading | 5 readings / s |
| Power | 1850 mAh lithium polymer battery |
| Temperature Coefficient | (0.05% reading + 0.02 G) / °C at 77 °F to 50 °F (25 °C to 10 °C) |
| Weight | 15.87 oz (450 g) |
