Overview

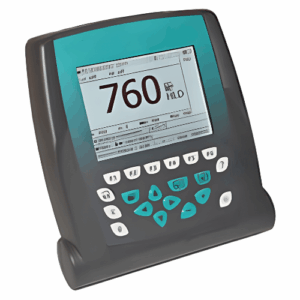

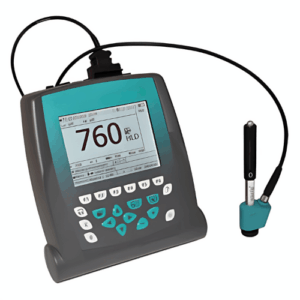

Enviro Forest Portable Hardness Tester is a versatile portable metal hardness tester offering extended capabilities and unmatched ease of operation. This metal hardness tester has a large and clear display which is integrated in the robust ABS plastic housing together with the sealed membrane keypad. With variable background lighting, the LCD display of the metal hardness tester offers a clear overview of the recorded metal hardness values even in dimly lit work areas. In particularly harsh working environments or for more comfortable handling the metal hardness tester Enviro Forest Portable Hardness Tester can be stored in a protective bag. To date, Enviro Forest Portable Hardness Tester is unmatched in its implementation of the portable metal hardness tester concept and has therefore become established as a globally recognized measuring technique. The Portable Hardness Tester meets the customers’ needs for a non-destructive metal hardness tester.
Features
- Equipment 3: Rugged handheld metal hardness tester
- Converts to common and 20 custom scales
- Accurate ±4 HL, automatic impact direction correction
- Wide measurement range, internal storage for 100,000 values
- User profiles, password-protected, and versatile connectivity
Technical Specifications
| Testing Method | Leeb rebound |

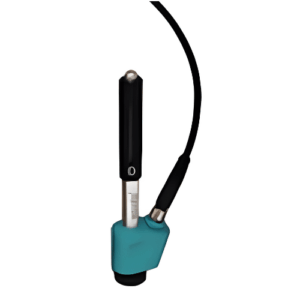

| Available Probes | C, D, DC, DL, E, G, S |
| Spherical Test Tip | Tungsten carbide, 3 mm diameter (for C, D, DC, DL probes) 5 mm diameter (for G probe.) Polycrystalline diamond or ceramics 3 mm diameter for E or S |
| Min. Radius Of Surface Curvature | 0.39 in (10 mm) |
| Resolution | 1 HL; 1 HV; 1 HB; 0.1 HRC; 0.1 HRB; 0.1 HRA; 0.1 HS; 1 MPa (1 N/mm²) |
| Accuracy | ± 4 HL (0.5 % at 800 HL) |
| Material | Shock resistant ABS plastic |
| Display | Large QVGA LCD with adjustable contrast and backlight |
| Internal Data Storage | 100,000 values |
| Communication | Ethernet, USB & RS 232 |
| PC Application | Equilink 3 software included |
| Battery Type | Rechargeable Li ion or 3 standard size “C” cells |
| Humidity | 90 % max |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Storage Temperature | 14 °F to 140 °F (-10 °C to 60 °C) |
| Dimensions | 6.7 in x 7.9 in x 1.8 in (170 mm x 200 mm x 45 mm) |
| Weight | 1.72 lb. (780 gm) plus approx. 0.26 lb (120 gm) battery pack |
