Overview

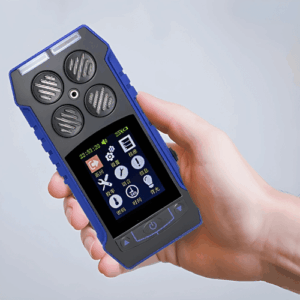

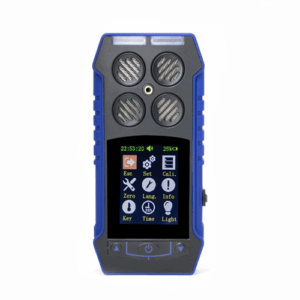

Enviro Forest portable multi gas detector could detect combustible gas, O2 and other two types toxic gases continuously and simultaneously. It is widely used in the area where explosion-proof is required or toxic gas leaks, like underground channels or mining industry, so as to protect the workers’ life and avoid damage on the relevant equipments.
Features
- Advanced MCU control with low power consumption
- Adjustable low and high alarm level
- Adjustable calibrating level
- High concentration protection for combustible gas
- Self-test for the combustible gas sensor
- Low battery indication
- Replaceable sensor module
- Self-adjustment function
- Visual and audible alarm with vibration
- STEL and TWA alarming for toxic gases
- Advanced self-examination and self-renovation function
- Password management to avoid wrong operation
- Explosive proof housing
Technical Specifications
| Sampling Method | Diffusion type |
| Detecting Range | CO: 0 ppm to 1000 ppm, H2S: 0 ppm to 100 ppm, O2: 0% vol to 30% vol, Combustible Explosive Gas (Ex or LEL or CH4): 0% LEL TO 100% LEL |
| Sensor | O2 or H2S or CO: plug-in electrochemical sensor |
| Alarm Type | Low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm |
| Resolution | 0.1% VOL (O2), 1 ppm (CO), 0.1 ppm (H2S), 1% LEL (EX) |
| Accuracy | 3% F.S |
| Response Time | 10 s |
| Repeatability | 1% |
| Zero Drift | 1% |
| Data Record | 500 pcs of data storage |
| Display | Alphanumeric large LCD displays the real time gas concentration and alarm stage |
| Backlight | Automatically activated when working in poor lighting environment or the alarm sounding or the button is knobbed down. |
| Self-Checking Function | Self-checking Battery power, display, sensor, hardware failure |
| Explosion-Proof | EXiaIICT4 |
| Protection Grade | IP65 |
| Power Supply | Rechargeable lithium battery |
| Pressure | 95 kPa to110 kPa |
| Humidity | 5% to 95% (Relative humidity non-condensing) |
| Temperature | -4 °F to 122 °F (-20 °C to 55 °C) |
| Dimension | 5.7 in × 2.71 in × 1.1 in (145 mm × 69 mm × 28 mm) |
