Overview

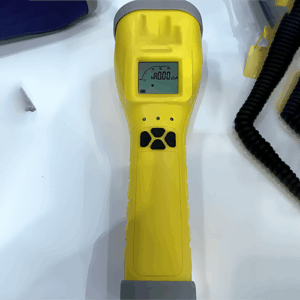

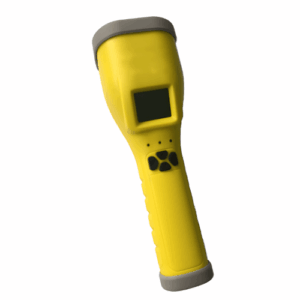

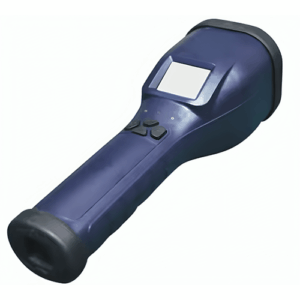

Enviro Forest portable radiation survey meter is the only hand-held radiation survey meter designed for detection of neutron and gamma radiation at the same time in China. Its neutron detector and gamma detector are 6LiI (Eu) and CsI (Tl) scintillation crystals coupled with photodiode respectively. The neutron detector is surrounded by a unique cylindrical moderator which greatly improves the sensitivity of neutron detection.
Features
- High sensitivity and fast response
- Neutron/Gamma independent channels
- Durable, compact, user friendly
- High-definition colorful LCD
- Audible and visible alarm simultaneously
- Electro-magnetic interference immunity, CE compliant
- ANSI N42.35 and ITRAP standard compliant
Technical Specifications
| Detector | Neutron: LiI(Eu) Gamma ray: CsI(Tl) |
| Energy Range | Neutron: 0.025 eV to 14 MeV Gamma ray: 30 keV to 3.0 MeV |
| Sensitivity | Neutron: 0.5 CPS/(μSv·h-1),252Cf source Gamma ray: ≥110 CPS/(μSv·h-1),137 Cs source |
| Dose Rate Range | Neutron: 1 μSv·h-1 to 100 mSv·h-1 Gamma ray: 0.01 μSv·h-1 to 100 μSv·h-1 |
| Dose Range | Neutron: 0.01μSv to 1Sv Gamma ray: 0.01 μSv to 10 Sv |
| DER Relative Error | Neutron:< ±20%(200keV to 7MeV)Gamma ray:< ±20% |
| Relative Humidity | 90%(86°F(30℃),non-condensing) |
| Temperature | 14° F to 122° F (-10 ° C to 50 ° C) |
| IP Rating | IP65 |

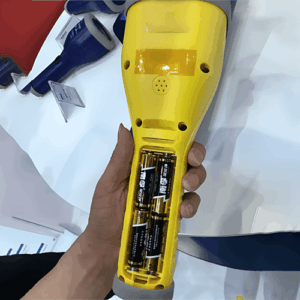

| Power Supply | 2600 mAh lithium ion battery, ≥ 20 hours |
| Communication | USB, RS232, wireless port |
| Weight | 1.52 lb (0.69 kg) |
| Dimensions | 3.5 in x 10.5 in (90 mm x 267 mm) |
