Features

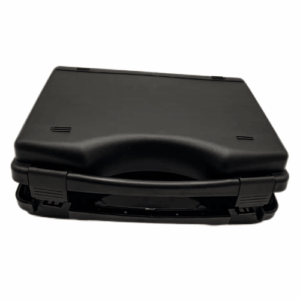

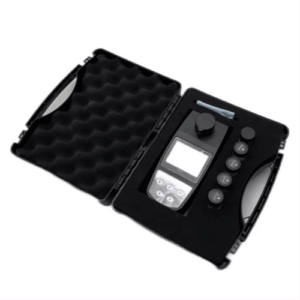

- Easy to use portable turbidity meter comes with a standard carrying case
- 2 to 5 points push-button calibration using the Formazin Standards
- Selectable 4 turbidity units, including the NTU, FNU, EBC and ASBC
- Single measurement mode automatically recognizes and locks the stable reading
- Continuous measurement mode can be used for indexing or matching the sample vials
- Auto Power Off effectively conserves battery life
- Setup menu allows setting the 7 parameters, including the number of calibration points,
- Reset feature automatically resumes all settings back to factory default options
- Expanded memory stores and recalls up to 100 data sets
- Stored data can be transferred into the computer by USB communication interface
- Multi mode power scheme (batteries, power adapter or USB port) ensures that use the
meter smoothly
Technical Specifications
| Measurement Method | ISO 7027 nephelometric method (90° scattered light) |
| Range | 0 NTU to 1100 NTU, 0 EBC to 275 EBC, 0 ASBC to 9999 ASBC |
| Accuracy | ± 2 % (0 NTU to 500 NTU), ± 3 % (501 NTU to 1100 NTU) |
| Resolution | 0.01 (0 NTU to 100 NTU), 0.1 (100 NTU to 999 NTU), 1 (999 NTU to 1100 NTU) |
| Calibration Points | 2 points to 5 points (0.02, 10, 200, 500, 1000 NTU) |
| Light Source | Infrared emitting diode, 850 nm wavelength |
| Detector | Silicon photodiode |
| Stray Light | < 0.02 NTU |
| Power Off | Manual or Automatic (15 minutes after last key pressed) |
| Memory | Stores up to 100 data sets |
| Output | USB communication interface |
| Power | 3 × 1.5 V AA batteries or 5 V DC power adapter |
| Suitable Vials | Round cuvettes, 2.36 in x 0.98 in (60 mm x 25 mm) |
| Dimensions | 7.08 in x 3.34 in x 2.75 in (180 mm × 85 mm × 70 mm) |
| Weight | 0.66 lb (0.3 kg) |
