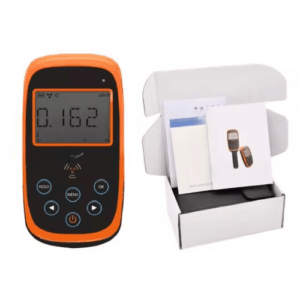

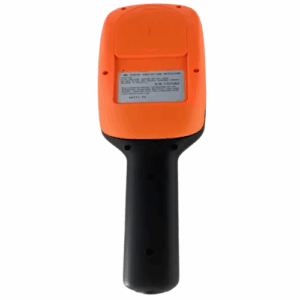

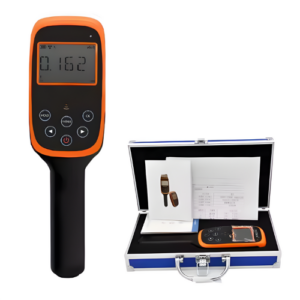

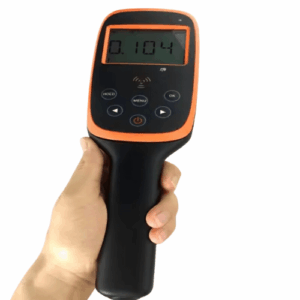

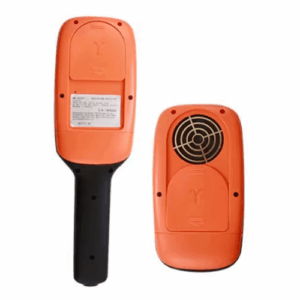

Name: Enviro Forest Radiation Meter Geiger Counter - Enviro Forest
SKU: EFORM-213

Overview

Enviro Forest Radiation Meter Geiger Counter is small, lightweight, easy to carry, and can maintain real-time maximum, and can be charged online, is a new cost-effective multi-function ray radiation detector. It is engaged in contact with isotopic or radiation device related staff, production, and processing materials, import and export products safety radiation, electronic equipment, personal dose monitoring and other multi-functional radiation safety monitoring instruments. The instrument simultaneously measures α, β, γ and Χ -ray, showing the unit µ Sv / h, mR / h, cps, cpm, Total. Users can set the alarm threshold of dose equivalent rate according to the needs of use. Advanced energy compensation technology is adopted, which makes the MR-50 measurement of different energy rays with good accuracy and meets the needs of different users.

Technical Specifications

Ray Type	α, β,γ, Χ-Ray α, ββ, γ, Χ-Ray
Range	0.001 to 100 mR/h 0.01 to 1000 µSv/h 0to 300000 CPM 0 to 9999 X Total
CAL Factor	0.01 to 9999 0.01 to 9999
Ray Selection Switch	Combination switch selection for α, β, γ and Χ-Ray
Sensor	GM tube with thin mica window, 1.4 to 2.0 mg / cm2 areal density. The effective diameter of the window is 1.75 in (45 mm).
Display Units	µSv/h, mR/h, cps ,cpm, Total, HOLD, Alarm value, battery leve
Alarm Method	Audible and visual alarm
Energy Range	20 KeV to 3 Mev 20 KeV to 3 Mev
Alarm Function	Self-setting alarm value, factory designed for one µSv/h
Display Conversion	Yes
Maintain Maximum Conversion	Yes
Accuracy	± 10 %
Source	9 V battery (in normal under 480 hours)
Display	2.36 in x 1.65 in (60 mm x 42 mm) large screen high-definition LCD display (six-digit LCD display)
Detector Operating Temperature	-58 °F to 176 °F (-50 °C to 80 °C)
Weight	0.72 lb. (0.330 kg) 0.79 lb. (0.360 kg)
Size	5.94 in x 3.14 in x 1.37 in (151 x mm 80 mm x 35 mm) 11.06 in x 3.14 in x 1.37 in (281 mm x 80 mm x 35 mm)
