Features
- Measuring range 0.1 μΩ to 3.3 MΩ, thermistor test function (optional)
- Basic accuracy 0.02 %, resolution 0.1 μΩ, max test current 1 A
- EXT I/O interface for NPN/PNP, suitable for various production lines

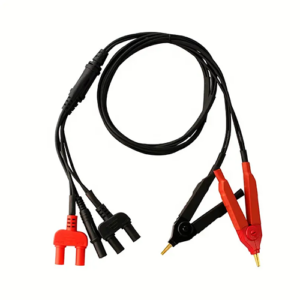

- Probe with port protection, anti-interference measurement
- Comparison judgment indicator and loud beeper, accurate qualification judgment
Technical specification
| Measurement Parameter | DC Resistance |
| Measurement Range | 0.1 μ ohm to 3.3 M ohm |
| Max Test Current | DC: 1 A; Maximum DC 5.5 V |
| Basic Accuracy | ±0.02% rdg. ±0.001% f.s. (accuracy varies based on different ranges, please refer to manual for detailed accuracy description) |
| Test Speed | Fast (50 Hz: 21 ms, 60 Hz: 18 ms), slow (200 ms) |
| Temperature | Range: 14 °F to 140 °F (-10 ℃ to 60 ℃)
Accuracy: ±33.8 °F (1 ℃) |
| Correction | Short-circuit clear zero for all ranges |
| Comparator | 10 bins sorting, output HIGH or IN or LOW sorting signal |
| Trigger | Internal, External, Manual, Bus Trigger |
| Other Function | Temperature compensation function, comparator (ABS or REF %), keypad lock (OFF or menu lock or all lock),
Power frequency setting (AUTO or 50 Hz or 60 Hz), judgment tone setting, automatic hold, average, panel save or read |

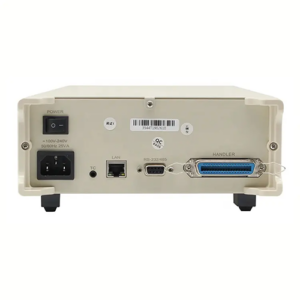

| Interface | External I/O interface, LAN interface, RS 232 or 485 interface |
| Power Supply | AC 100 V to 256 V, 50 Hz to 60 Hz, rated power: 15 VA |
| Dimension | 12.7 in x 8.4 in x 3.7 in (325 mm x 215 mm x 96.5 mm) |
| Weight | 8.8 lb (4 Kg) |
