Overview

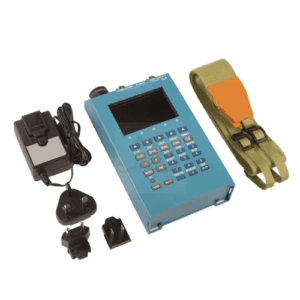

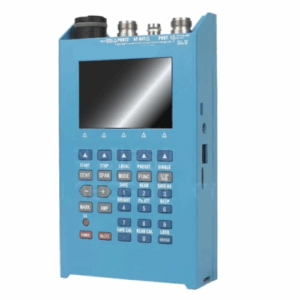

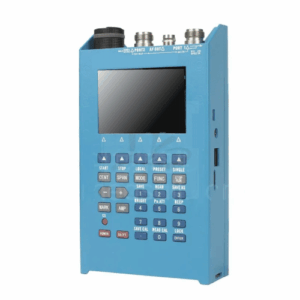

Enviro Forest vector network spectrum analyzer is a versatile RF multimeter whose main function is the single port vector network analyzer (VNA, S11). It supports vector transmission tests (S21 scalar and simple vector), simple spectrum analyzer, field strength meter, RF signal source, Audio signal source and other functions. It has professional practicality, and includes support for 4 hours of continuous work, including the battery, the volume of only 1 CBM, weighs only 2.204 lb (1 kg), to bring users a new free experience.
Technical Specifications
| Frequency Range | 9 kHz to 6.8 GHz |
| Frequency Accuracy | ± 0.01 ppm |
| Scanning Range | 1 kHz to 6.8 GHz |
| Number of scanning points | 450 pt to 3150 pt |
| Level resolution | 0.01 dB |
| Phase resolution | 0.01 |
| Output level | 1 MHz to 5 GH, -10 dBm5 GHz to 6.8 GHz, -20 dBm |
| Sensitivity | 1 MHz to 5 GHz, -107 dBm5GHz to 6.8 GHz, 94 dBm |
| Screen type | 5-in HD IPS capacitive touch screen |
| Frequency stability per year | 1 ppm |
| Temperature range | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimension | 7.87 in x 4.49 in x 1.81 in (200 mm x 114 mm x 46 mm) |
| Weight | 2.204 lb (1 kg) |
