Overview

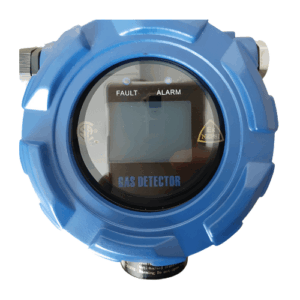

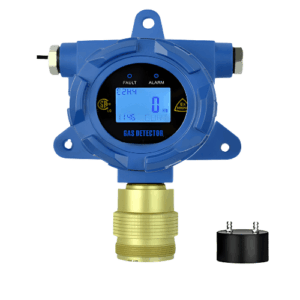

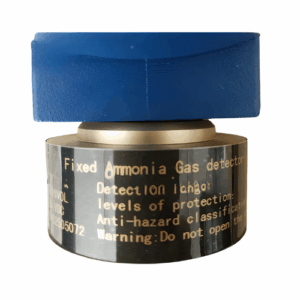

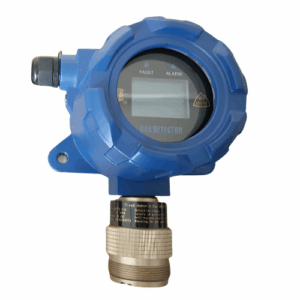

Enviro Forest wall-mounted ammonia gas detector can also have a field detection concentration display, signal transmission, led lights and relay alarm function. Volkswagen series shows the fixed ammonia detector works is the site of the detection of ammonia gas concentration, converted to the corresponding standard signals (such as voltage signals (such as 0 V to 5 V or 10 V), current signals (such as 4 mA to 20 mA) , Standard digital signals (such as bus RS-485, RS232), frequency signal, Hart protocol signal, and then send the signal to the PLC, DCS, alarm control host and other host computer for unified display, management and control. Gas detector with a relay inside (switch signal), you can control the fan, sound and light alarm, solenoid valve and other equipment.
Features
- Ultra-high-definition color display
- Standard signal output range
- Black box function: operation, alarm records, over-temperature use records
- Reminders and alarm function is complete sensor expiration reminder function
- Fault alarm function, instrument calibration reminder function
- Flameproof design, intrinsically safe design, RoHS design
- Zero automatic correction: for some environmental applications
- The instrument can achieve zero automatic correction function
- Dual operation mode: key operation + remote control operation
Technical Specifications
| Name | Ammonia gas detector |
| Test Gas | Ammonia gas |
| Measuring Range | Depends on real application |
| Display Unit | ppm,mg per m3, ppb,pphm,%VOL,%LEL |
| Resolution | Depends on measuring range you choosed |
| Accuracy | ≤ ±3% FS |
| Repeatability | ≤ ±1% |
| Response Time | ≤ 3 (T1); ≤15 (T90) |
| Recovery Time | ≤ 20 (T90 to T10) |
| Display | 320 x 240 HD color screen,2.0 inch |
| Operation Mode | Infrared remote control, key (open cover), remote network (such as mobile phone APP or PC software) |
| Detection Mode | Diffuse |
| Installation Mode | Wall-mounted (wall-mounted), rod-mounted (cross bar or pole) |
| Shell Material | Body: alloy (anti-corrosion anti-oxidation surface treatment) or stainless steel. Probe: anti-corrosion alloy or 316 L stainless steel |
| Explosion-Proof Mark | Double explosion standard Exd CT6 and Ex Td A21 |
| Protection Rate | IP66 |
| Work Humidity | 10% RH to 95% RH, no condensation (humidity > 90% RH, condensation optional filter) |
| Work Pressure | 0.08 MPa to 0.6 MPa (thermal conductivity principle sensor) 0.02 MPa to 0.36 MPa (zirconia principle oxygen sensor) 86 KPa to 106 KPa (other) |
| Output Signal | Two-wire system 4 mA to 20 mA Two-wire Hart Three-wire system 4 mA to 20 mA + 1 relay (switch, optional function) Voltage 0 V to 5 V or 10 V + 1 relay (switch, optional function) RS-485 plus 1 relay (switch, optional) RS-422 plus 1 relay (switch, optional) Three-wire current 4 to 20 mA plus RS-485 plus 1 relay (switch, optional function) Voltage 0 V to 5 V or 10 V plus RS-485 plus 1 relay (switch, optional function) Frequency signal (adjustable) plus 1 relay (switch, optional function) Three-wire Hart plus 1 relay (switch, optional) CAN bus plus 1 relay (switch, optional) Note: Relay (switch) Specifications: Output 2 A by 30 V DC or 0.6 A by 125 V AC |
| Power Consumption | Electrochemical sensor: P ≤ 0.9 W Ordinary catalytic sensor: P ≤ 2.3 W Low power catalytic sensor: P ≤ 1.2 W Thermal conductivity sensor: P ≤ 1.2 W Infrared sensor: P ≤ 1.4 W PID sensor: P ≤ 1.2 W |
| Alarm | Panel LED alarm, display character flashing and information reminder, relay output |
| Control Output | External fans, valves, sound and light alarm |
| Protection | Intermittent detection, sensor automatic protection function (optional) |
| Power Supply | 12 V DC to 35 V DC, typical power supply 24 V DC |
| Temperature Measuring Range | -40 °F to 248 °F (-40 ºC to +120 ºC) Accuracy ± 33.8 °F (1 ºC) (with temperature compensation function) |
| Work Temperature | -40 °F to 158 °F (-40 ºC to 70 ºC) (general catalytic combustion principle sensor) -40 °F to 518 °F (-40 ºC to 270 ºC) (special catalytic combustion) -40 °F to 122 °F (-40 ºC to 50 ºC) (electrochemical) -4 °F to 122 °F (-20 ºC to 50 ºC) (pid principle sensor) -4 °F to 122 °F (-20 ºC to 50 ºC) (infrared or fluorescence gas sensor) -40 °F to 158 °F (-40 ºC to 70 ºC) (thermal conductivity principle sensor) -40 °F to 788 °F (-40 ºC to 420 ºC) (zirconia principle oxygen sensor) |
| Size | 8.07 in x 7.24 in x 3.66 in (205 mm x 184 mm x 93 mm) |
| Weight | ≥ 3.63 Ib (1.65 kg) |
