Overview

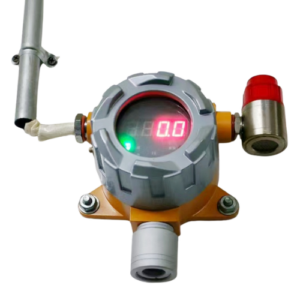

This explosion proof industrial gas detector is specifically designed for fixed monitoring of methane, LPG, CH4, and hexane in hazardous environments. It features high sensitivity sensors that provide accurate and continuous gas detection, ensuring early warning of leaks before dangerous concentrations occur. The device is equipped with audible and visual alarms to alert users instantly, making it suitable for factories, chemical plants, and other industrial facilities. With durable construction and explosion proof certification, this detector offers reliable long-term performance and enhanced safety for critical applications.
Features
- Explosion proof design for industrial safety.
- Detects methane, LPG, CH4, and hexane gases.
- High sensitivity sensor for accurate detection.
- Audible and visual alarms for instant alerts.
- Fixed installation for continuous monitoring.
- Suitable for factories and chemical plants.
- Provides early warning to prevent accidents.
Technical Specifications
| Parameter | Value |
| Detection Gas | Combustible gas or toxic gas |
| Common Gas Types | LPG, natural gas, methane (CH4), butane, ethane, propane, ethanol, isobutane, n-butane, H2S, CO, O2, NH3, H2, HCL, CO2, CL2, SO2, O3, C2H4, C2H2, NO2, NO, HF. |
| Detection Principle | Catalytic combustion type or infrared type, electrochemical or infrared type. |
| Measuring Range | Combustible gas 0 to 100 % LEL, toxic gas 0 to 10 ppm, 0 to 20 ppm, 0 to 100 ppm, 0 to 1000 ppm or 0 to 5000 ppm. |
| Output Signal | 4 to 20 mA (three-wire) or RS485 (four-wire) plus switch. |
| Working Voltage | 24 V DC |
| Power Consumption | Less than or equal to 3 W |
| Protection Level | IP65 |
| Sampling Method | Natural diffusion |
| Certification | ATEX, SIL, CE, CNEX, ISO9001 |
| Installation Method | Wall-mounted or pipe-holding |
| Function | Detects gas leakage concentration and provides sound and light alarm |
| Application | Chemical metallurgy, petroleum, natural gas, and other hazardous gas areas |
| Display Type | LED digital display |
| Material | Cast aluminium |
| Weight | 3.85 lb or 5.51 lb |
| Operating Temperature | -40 °F to 158 °F or -4 °F to 122 °F (-40℃~70℃) |
