Overview

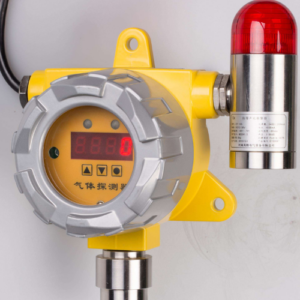

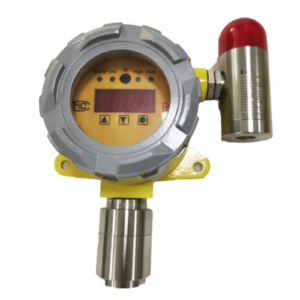

The Enviro Forest Fixed Combustible Gas Detector is designed for precise, continuous monitoring of flammable gases including butane, LPG, and methane. It provides versatile signal outputs (4–20 mA, RS-485, relay) and a robust IP66-rated enclosure for reliable performance outdoors and indoors. With durable catalytic sensing, wide temperature tolerance, and robust industrial certification, it’s well-suited for applications like storage facilities, pump rooms, utility areas, and production zones.
Features
- 0–100% LEL detection for combustible gases (butane, LPG, methane)
- Multiple output options: 4–20 mA, RS-485 Modbus, and relay contacts
- Rugged IP66 weatherproof housing for harsh environments
- Compact and easy to mount within industrial systems
- Certified (CE, ISO, ATEX)
Technical Specifications
| Specification | Details |
| Measuring Range | 0–100% LEL (combustible gas) |
| Signal Outputs | 4–20 mA, RS-485 communication, relay contact |
| Sensor Type | Catalytic sensor |
| Ingress Protection | IP66 rated for dust and water resistance |
| Operating Temperature | –20 °C to +50 °C |
| Power Supply | 24 V DC ±15% |
| Weight | Approx. 1,500 g |
| Enclosure Material | Durable yellow ABS/plastic |
| Hazard Certifications | CE, ISO, ATEX |
| Typical Warranty | 1 year |
| OEM Custom Support | Logo and packaging customization available |
| Installation Type | Fixed mounting (flush or surface) |
| Package Contents | Single unit per standard packaging |
| Response Time | Industry-standard catalytic response (seconds range) |
| Applications | Industrial monitoring—warehouses, utility, remote sites |
| Maintenance | Field-serviceable with common tools |
