Overview

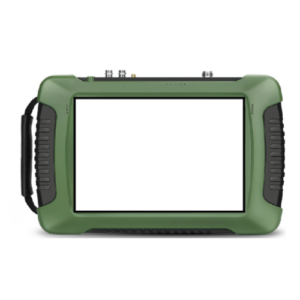

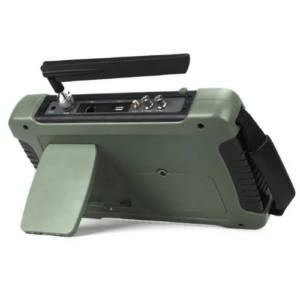

Enviro Forest handheld multi-standard wireless signal analyzer & tester that integrates high-performance signal analysis modules and multi-standard analysis algorithm software. The newly launched platform meets the requirements of communication operators for mobile communication testing. It has higher test frequency, larger resolution bandwidth, faster scanning speed, lower receiving sensitivity, and rich interfaces. It also has interference analysis, wireless Signal direction finding and positioning, field strength test, 5GNR/TOD-LTE/FDD-LTE/NB-LOT/WCDMAGSM signal analysis and other measurement functions.
Features
- 5kHz-4.5GHz/6.32GHz/7.5GHz/9GHz/20GHz/40GHz test frequency range;
- Spectrum scanning speed 5kHz～9GHz/20GHz can reach 137GHz/s (@25KHz), and can capture 100% of the signal;
- The receiving sensitivity of Sub 6G can reach -170dBm/Hz, and the receiving sensitivity of high frequency can reach -165dBm/Hz;
- It has the demodulation and analysis function of various mobile communication systems such as 5GNR/TDD-LTE/FDD-LTE/NB-loT/WCDMA/GSM;
- Up to 100MHz real-time analysis bandwidth;
- Support 100MHz bandwidth TDD system uplink and downlink separation interference troubleshooting test;
- It can export IQ data with 100MHz real-time bandwidth, and support third-party development software to analyze IQ data;
- Afterglow spectrum, effective monitoring of superimposed signals or burst signals;
- Support AOA drama mode, support stand-alone, online multi-point positioning function;
- Support remote control;
- Support the relevant interference test system, and cooperate with PAD to complete the automatic positioning function of the drive test;
- 5-inch capacitive touch screen with various operating modes such as daylight mode and dark mode.
- Small size, light weight (≤2. 3kg); flexible power supply (equipped with portable power supply equipment, working time ≥6 hours); convenient to carry in various ways such as hand-held, motorized, and vehicle-mounted.
Technical Specifications
| Feature | Specification |
| Frequency Range | 5 kHz ~ 4.5 GHz |
| Display Average Noise Level | 100 MHz ~ 4.5 GHz: ≤ -157 dBm/Hz |
| Reference Level Range | -130 dBm ~ +30 dBm |
| Phase Noise (at 1 GHz) | ≤ -110 dBc/Hz @10 kHz; ≤ -126 dBc/Hz @1 MHz |
| Max Real-Time Spectrum Analysis Bandwidth | 8 MHz |
| Max Input Safety Power | ≥ 26 dBm @30 MHz–20 GHz |
| Level Accuracy | ±1 dB @100 MHz ~ 4.5 GHz |
| Max Input Safety Power (repeated) | 26 dBm |
| Detection Mode | Normal, Positive Peak, Negative Peak, RMS, Sampling |
| Multi-MARKER Function | Set 5 marker points simultaneously |
| Multi-Track Function | Up to 5 spectrum scanning tracks: real-time, max, min (average), etc. |
| Config Saving & Reading Back | 10 groups of function parameter configs, can be saved & retrieved |
| IQ Data Saving/Calling | Supported |
| Interface | ≥1 USB, 10 MHz reference, network, external trigger, GPS antenna interface |
| Screen Size | ≥10.5 inches |
| Screen Resolution | ≥1920 × 1080 |
| Interface (repeated) | ≥1 USB, 10 MHz reference, external trigger, GPS antenna interface |
| Weight | < 2.5 kg |
