Overview

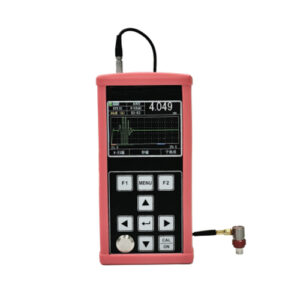

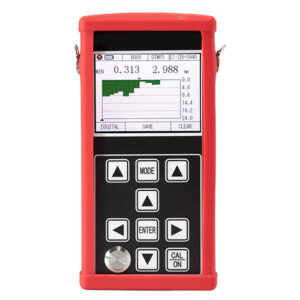

Enviro Forest Handheld Non-Metallic Ultrasonic Coating Thickness Gauge is a portable precision instrument designed to measure the thickness of coatings and materials on non-metallic and metallic substrates. With advanced ultrasonic technology and multiple measurement modes (THIN, MB-E, E-E, and Auto), it provides fast, accurate, and non-destructive thickness testing. Its high-resolution display, versatile probe options, and wide measuring range make it ideal for industries such as automotive, aerospace, plastics, and manufacturing quality control.
Features
- Wide measuring range: 0.0008 in to 70.87 in (20 µm to 1800 mm)
- Multiple measurement modes: THIN, MB-E, E-E, Auto
- High resolution of 0.00004 in (0.001 mm)
- Supports both single crystal and twin crystal probes
- Adjustable measurement frequency: 4 Hz, 8 Hz, 16 Hz
- Comes with calibration block (0.16 in / 4 mm steel)
- Non-destructive and highly accurate testing for coatings and substrates.
Technical Specifications
| Type | Handheld Ultrasonic Coating Thickness Gauge |
| Measurement Modes | THIN, MB-E, E-E, Auto |
| Probe Type | Single crystal or twin crystal |
| Measurement Frequency | 4 Hz, 8 Hz, 16 Hz |
| Calibration Block | 0.16 in (4 mm) steel |
| Measuring Range | 0.0008 in to 70.87 in (20 µm to 1800 mm) |
| Resolution | 0.00004 in (0.001 mm) |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
