Features

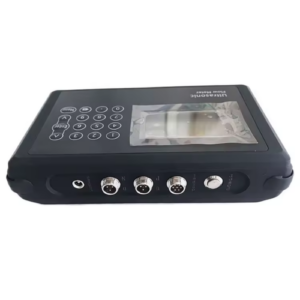

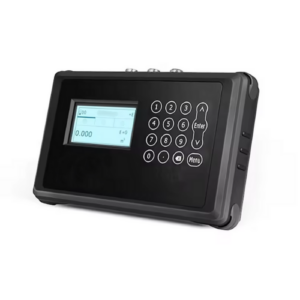

- Handheld ultrasonic flowmeter
- Clamp-on installation
- Accuracy ±1%
- Flow range 0.01–12 m/s
- Supports RS485 & 4–20mA output
- LCD backlit display
- For DN25–1200 pipes
- Works with water & liquids
Technical Specifications
| Flow Range | ±0.03 to ±40 ft/s (±0.01 to ±12 m/s) |
| Accuracy | ±1% of measured value |
| Fluid | Single medium liquid |
| Pipe Size | 1 in to 48 in (25 mm to 1200 mm) |
| Pipe Material | Carbon steel, stainless steel, PVC or compact pipe |
| Outputs | 4 to 20 mA (max 750Ω), Modbus RS485 |
| SD Card | 16 GB |
| Power Supply | Rechargeable lithium battery, 3000 mAh (up to 16 hrs) |
| Interval | 1 to 99999 seconds |
| Display | 240 x 128 backlit LCD |
| Humidity | Up to 99% RH, non-condensing |
| Protection | Transmitter: NEMA13, IP54 / Transducer: IP68 |
| Cable Length | 16 ft (5 m) |
| Temperature | Transmitter: -40 °F to 140 °F (-40 °C to 60 °C) |
